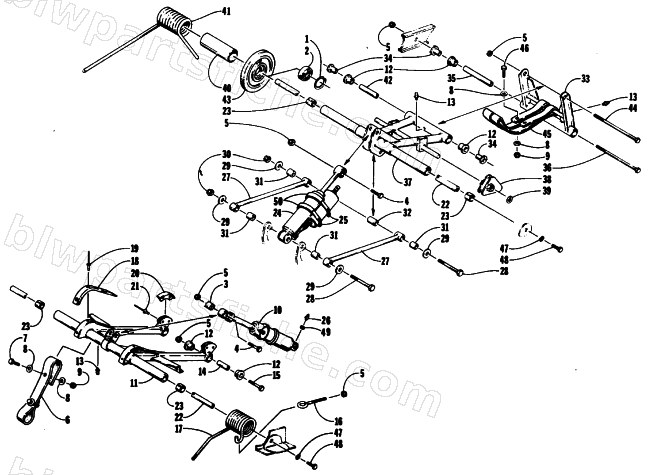

1990 Arctic Cat EL TIGRE EXT SPECIAL — REAR SUSPENSION ARM ASSEMBLIES
1990 EL TIGRE EXT SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 2 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 3 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 4 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 5 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 6 | 0604-421 | STRAP,LIMITER-FRONT | 1 | $37.95 | |
| 7 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 8 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 0704-209 | SHOCK ABSORBER ASS'Y-FRONT ARM | 1 | $990.95 | |
| 12 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 13 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 14 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 15 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 16 | 2272-037 | BOLT,CLOSED EYE,3/8-16UNC W | 1 | $20.95 | |
| 19 | 0623-149 | RIVET,CHERRY SSPQ56 | 1 | $1.95 | |
| 20 | 0604-183 | BUMPER,TRACK GUIDE | 1 | $32.95 | |
| 21 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 22 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 23 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 24 | 0704-210 | SHOCK ABSORBER ASS'Y- REAR ARM | 1 | $990.95 | |
| 25 | 0623-255 | CLAMP,HOSE 2/16-3 #40 | 1 | $18.95 | |
| 26 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 27 | 1704-201 | LINK,REAR SHOCK-PTD BLK | 1 | $54.95 | |
| 28 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 29 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 30 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 31 | 0604-269 | AXLE,LINK-REAR SHOCK | 1 | $1.64 | |
| 32 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 33 | 0704-177 | ARM,REAR-FABRICATION | 1 | $129.95 | |
| 34 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 36 | 0623-782 | SCREW,CAP-HH 3/8-16X10 GR 8 Z&Y | 1 | $13.73 | |
| 37 | 0704-113 | ARM,IDLER-FAB | 1 | $209.95 | |
| 38 | 0638-104 | SPRING ADJ. BLOCK KIT | 1 | $34.95 | |
| 39 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 40 | 0114-160 | SLEEVE,SPRING | 1 | $12.35 | |
| 41 | 1704-180 | SPRING,SUSPENSION-RH-PTD BLK | 1 | $99.95 | |
| 41 | 1704-181 | SPRING,SUSPENSION-LH-PTD BLK | 1 | $124.95 | |
| 42 | 0604-204 | AXLE,IDLER-LOWER | 1 | $44.95 | |
| 43 | 0604-205 | WHEEL,IDLER W/HOLE | 1 | $78.95 | |
| 44 | 0623-106 | SCREW,CAP 3/8-16X8 ZN/YLW GR5 | 1 | $2.95 | |
| 45 | 0604-432 | STRAP,LIMITER-REAR | 1 | $36.95 | |
| 46 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 47 | 8051-278 | WASHER,SPR LOCK-3/8 .377X.688X.115 BLK | 1 | $2.95 | |
| 48 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 49 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 50 | 0604-442 | TRIM,PLASTIC-4 1/2 | 1 | $4.82 | |
| 51 | 0604-447 | HOSE,RES TO RR SHOCK | 1 | $142.95 |
