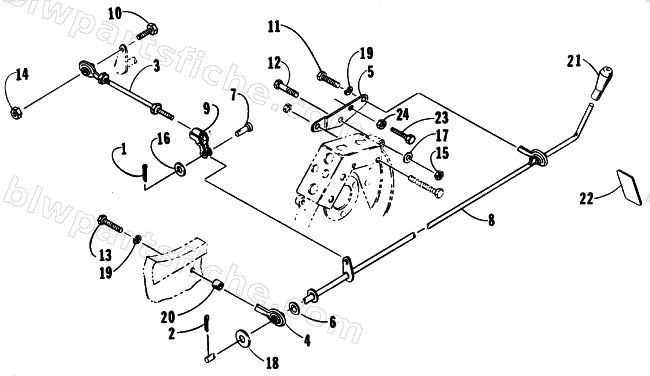

REVERSE SHIFT LEVER ASSEMBLY
1990 EL TIGRE EXT SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 3 | 0602-151 | LINK,SHIFTING-AFS MODELS | 1 | $77.95 | |
| 4 | 0602-163 | ROD END,FEMALE-.375 | 1 | $24.77 | |
| 5 | 0602-172 | BRKT,ROD END MTG-SHIFT LEVER | 1 | $30.95 | |
| 6 | 0623-130 | WASHER,SPRING-3/8 | 1 | $1.50 | |
| 7 | 0623-132 | PIN,CLEVIS-.25X.75 LG | 1 | $2.47 | |
| 8 | 0702-056 | LEVER,SHIFT-WELDT | 1 | $80.95 | |
| 9 | 0702-057 | YOKE,LINKAGE-WELDM'T | 1 | $40.95 | |
| 10 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 11 | 8004-222 | SCREW,CAP-HH 3/8-24X1.0 G5 Z&Y | 1 | $0.55 | |
| 12 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 13 | 8004-224 | SCREW,CAP-HH 3/8-24X1.25 G5 Z&Y | 1 | $0.55 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 18 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 19 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 20 | 0114-312 | SPACER,FRONT-SHOCK MTG | 1 | $16.49 | |
| 21 | 0602-152 | KNOB,SHIFT LEVER | 1 | $15.11 | |
| 23 | 8003-047 | SCREW,CAP-HH 1/4-28 X2.00 G2 Z&Y | 1 | $0.45 | |
| 24 | 8042-396 | NUT,1/4-28 HEX-REG-GR5 Z&Y | 1 | $0.15 |
