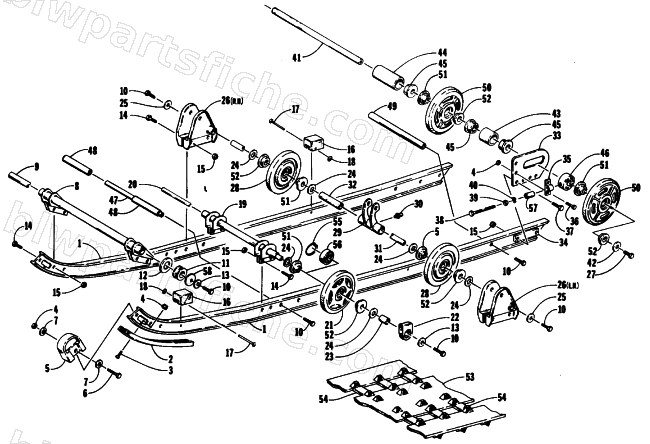

1990 Arctic Cat EL TIGRE EXT SPECIAL — SLIDE RAIL AND TRACK ASSEMBLY
1990 EL TIGRE EXT SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-247 | RAIL,SLIDE FORMED | 1 | $282.95 | |
| 2 | 0604-248 | WEARSTRIP,SLIDE RAIL | 1 | $32.95 | |
| 3 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 6 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 7 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 0704-238 | BRKT,FRONT CROSSBRACE-WELDMT | 1 | $128.95 | |
| 9 | 0604-252 | AXLE,FRONT CROSSBRACE | 1 | $81.95 | |
| 10 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 11 | 0604-582 | ROLLER/SLIDE,FRONT SPRING | 1 | $3.30 | |
| 12 | 0604-302 | SPACER,ROLLER-FRONT SPRING | 1 | $4.95 | |
| 13 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 14 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 17 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 18 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 19 | 0704-051 | CROSSBRACE,AUX WHEEL-WELDMENT | 1 | $163.95 | |
| 20 | 0604-380 | AXLE,CROSS-FRONT SHOCK | 1 | $47.95 | |
| 22 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 23 | 0114-134 | AXLE,OUTER AUX.WHL | 1 | $29.95 | |
| 24 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 25 | 0623-140 | WASHER,FLAT .344X.875X.120 | 1 | $0.68 | |
| 26 | 0704-074 | BRKT,MTG-WELDED-RH FRONT ARM | 1 | $65.95 | |
| 26 | 0704-075 | BRKT,MTG-WELDED-LH FRONT ARM | 1 | $50.95 | |
| 27 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 28 | 0114-240 | WHEEL,IDLER | 1 | $53.95 | |
| 29 | 0704-589 | PIVOT,REAR SHOCK-PTD BLK | 1 | $30.95 | |
| 30 | 9916-963 | ZERK,.188 X.094 SHANK (PRESS FIT) | 1 | $3.71 | |
| 31 | 0604-297 | AXLE,IDLER WHEEL-10.750 | 1 | $60.95 | |
| 32 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 33 | 0604-131 | HOUSING,REAR AXLE | 1 | $50.95 | |
| 34 | 0604-152 | SPACER,REAR AXLE HOUSING | 1 | $7.95 | |
| 35 | 0604-206 | TRACK ADJUSTOR-MACHINED | 1 | $13.73 | |
| 36 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 37 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 38 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 39 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 40 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 41 | 0604-431 | AXLE,REAR WHEEL | 1 | $51.95 | |
| 42 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 44 | 1704-466 | SPACER,REAR WHEEL-PTD BLK | 1 | $17.87 | |
| 45 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 46 | 0604-165 | BUSHING,REAR WHEEL-ADJ. | 1 | $10.97 | |
| 48 | 0604-425 | SPACER,SHOCK MTG-ALUMINUM | 1 | $37.95 | |
| 49 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 50 | 0114-206 | WHEEL,6.375 W/.625 INSERTS | 1 | $44.95 | |
| 51 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 52 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 53 | 1602-756 | TRACK,15 X121X.85-BUMP | 1 | $946.95 | |
| 54 | 0602-229 | GUIDE,TRACK (CAMOPLAST) | 1 | $10.97 | |
| 55 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 56 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 57 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 58 | 0623-221 | WASHER,FLAT 5/16X2.00 | 1 | $0.95 |
