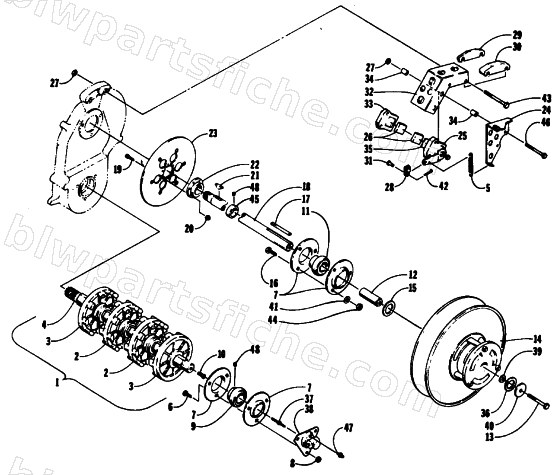

1990 Arctic Cat EL TIGRE EXT — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
1990 EL TIGRE EXT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-004 | TRACK DRIVE ASSY | 1 | $289.95 | |
| 2 | 0102-297 | SPROCKET,8 TOOTH | 1 | $50.95 | |
| 5 | 0115-602 | SPRING,BRAKE ARM RETURN | 1 | $47.95 | |
| 6 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 7 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 10 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 11 | 1602-290 | BEARING,1 W/LOCK(LARGE RACE) | 1 | $81.95 | |
| 13 | 8002-142 | SCREW,CAP-HH 5/16-18 X3.25 G5 Z&Y | 1 | $0.65 | |
| 14 | 0726-022 | CLUTCH,DRIVEN | 1 | $606.95 | |
| 15 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 15 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 16 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 17 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 18 | 0728-003 | SHAFT,DRIVEN | 1 | $174.95 | |
| 19 | 0623-185 | SCREW,SOCKET HD 10-32X5/8 BLACK | 1 | $13.95 | |
| 20 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 21 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 22 | 0115-594 | HUB,BRAKE | 1 | $97.95 | |
| 23 | 0109-867 | DISC,BRAKE | 1 | $125.95 | |
| 24 | 0115-610 | BRKT, BRKE CBL MNT | 1 | $22.01 | |
| 26 | 0115-603 | PUCK,BRAKE | 1 | $21.95 | |
| 27 | 0124-060 | NUT,CROWNLOCK 3/8-16 UNC Z&Y | 1 | $0.85 | |
| 28 | 0117-867 | CLEVIS | 1 | $37.95 | |
| 29 | 0115-586 | SPACER,BRAKE BRACKET | 1 | $16.95 | |
| 30 | 0115-587 | SPACER,BRAKE BRACKET | 1 | $21.95 | |
| 31 | 0423-109 | PIN,CP26 | 1 | $0.45 | |
| 32 | 0115-583 | BRKT,MTG BRAKE-WELD'T. | 1 | $126.95 | |
| 33 | 0115-584 | CALIPER,STATIONARY CASTING | 1 | $62.95 | |
| 34 | 0115-585 | SPACER,BRAKE CALIPER | 1 | $16.95 | |
| 36 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 37 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 38 | 0620-031 | ADAPTOR,DRIVE SPEEDOMETER | 1 | $109.95 | |
| 39 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 41 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 43 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 44 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 46 | 0124-079 | HHCS,3/8-16X3 1/2 GR5 | 1 | $26.95 | |
| 47 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 48 | 0623-216 | SCREW,SET 1/4-28X.25 TYPE G | 1 | $0.95 | |
| 48 | 0623-217 | SCREW,SET 1/4-20X.25 TYPE G | 1 | $0.35 |
