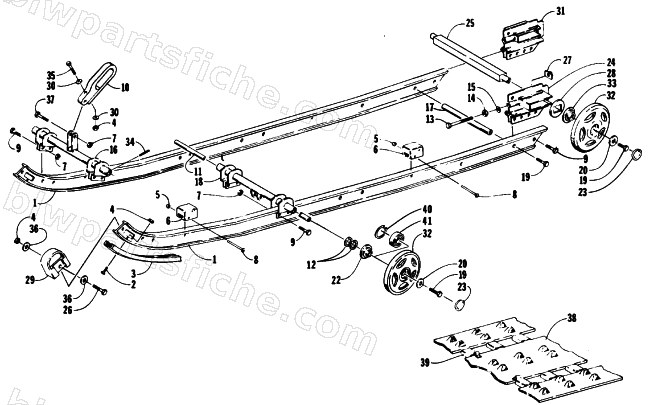

SLIDE RAIL AND TRACK ASSEMBLY
1990 JAG MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-405 | RAIL,SLIDE-FORMED | 1 | $177.95 | |
| 2 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 6 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 7 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 8 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 9 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 10 | 0114-324 | STOP,FRONT ARM | 1 | $39.95 | |
| 11 | 0604-245 | AXLE,INNER AUX-WHL-REAR | 1 | $89.95 | |
| 12 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 13 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 14 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 15 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 16 | 1704-194 | CROSSBRACE,FRONT-PTD BLK | 1 | $117.95 | |
| 17 | 0604-163 | SUPPORT,RAIL REAR | 1 | $24.95 | |
| 18 | 1704-512 | CROSS BRACE,SHOCK MTG-PTD BLK | 1 | $271.95 | |
| 19 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 20 | 0123-474 | WASHER,FLAT 21/64X1-1/4 | 1 | $2.95 | |
| 22 | 1604-774 | INSERT,5/8 BORE X 2" (LONG) | 1 | $6.34 | |
| 23 | 0604-246 | CAP,IDLER WHEEL-BLACK (DP 1500) | 1 | $3.16 | |
| 24 | 0114-120 | HOUSING,REAR AXLE WELDED RH | 1 | $100.95 | |
| 25 | 0604-242 | AXLE,REAR | 1 | $94.95 | |
| 26 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 27 | 0104-838 | PLATE & NUT-WELDMENT | 1 | $21.95 | |
| 28 | 0623-023 | WASHER, RECTANG. | 1 | $1.95 | |
| 29 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 30 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 31 | 0114-121 | HOUSING,REAR AXLE WELDED LH | 1 | $82.95 | |
| 32 | 0604-331 | WHEEL,IDLER-BLACK SPOKED | 1 | $51.95 | |
| 33 | 0604-224 | INSERT,IDLER WHEEL | 1 | $5.51 | |
| 34 | 8070-285 | PIN,SPRING-5/32 X 1-1/8 SLOTTED P&O | 1 | $1.95 | |
| 35 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 | |
| 36 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 37 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 39 | 0102-255 | CLIP,GUIDE-TRACK | 1 | $2.95 | |
| 40 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 41 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 |
