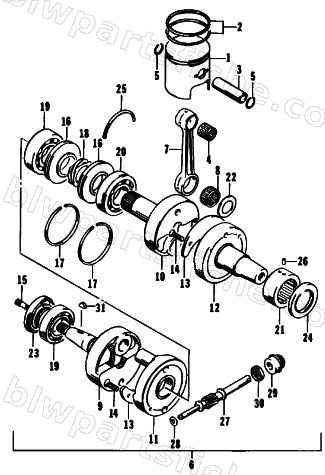

1990 Arctic Cat PANTERA — PISTON AND CRANKSHAFT
1990 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-586 | PISTON ASSY.( 440 L/C ) | 1 | $300.95 | |
| 2 | 3002-738 | RING SET,440L/C | 1 | $73.95 | |
| 3 | 3003-732 | PIN,PISTON | 1 | $32.95 | |
| 4 | 3003-107 | BEARING,PISTON PIN,ROLLER,M18X23X22 | 1 | $30.95 | |
| 5 | 3003-537 | CIRCLIP,PISTON PIN,M18 | 1 | $2.75 | |
| 6 | 3005-334 | CRANKSHAFT- ASSY | 1 | $2,299.95 | |
| 7 | 3002-166 | ROD CONNECTING | 1 | $277.95 | |
| 8 | 3003-170 | BEARING, ROD,ROLLER,M22,28,15.8 | 1 | $43.95 | |
| 9 | 3004-443 | CRANKSHAFT, RH | 1 | $500.95 | |
| 10 | 3003-650 | CRANKSHAFT,MIDDLE | 1 | $332.95 | |
| 11 | 3005-300 | WHEEL, CRANKSHAFT | 1 | $549.95 | |
| 12 | 3005-299 | CRANKSHAFT, LH | 1 | $517.95 | |
| 13 | 3003-653 | BALANCER, CRANKSHAFT | 1 | $36.95 | |
| 14 | 3003-395 | SCREW,6X20 C/S | 1 | $3.44 | |
| 16 | 3003-654 | RACE,MIDDLE SEAL | 1 | $59.95 | |
| 17 | 3003-655 | RING | 1 | $31.95 | |
| 18 | 3005-385 | GEAR, OIL PUMP DRIVE | 1 | $196.95 | |
| 19 | 3002-624 | BEARING,CRANKSHAFT,BALL,M30X65X16 | 1 | $96.95 | |
| 20 | 3006-095 | BEARING,'02 440 F/C SNO PRO | 1 | $126.95 | |
| 21 | 3003-677 | BEARING,CRANKSHAFT-LH,ROLLER,M35X55X23 | 1 | $171.95 | |
| 22 | 3003-745 | WASHER,CRANK PIN BRG.,22MM | 1 | $9.59 | |
| 23 | 3002-717 | SEAL,CRANKSHAFT-M30 | 1 | $49.95 | |
| 24 | 3004-089 | SEAL, OIL,M35 | 1 | $37.95 | |
| 25 | 3003-736 | C-RING,CRANKSHAFT,M65 | 1 | $13.95 | |
| 26 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 27 | 0637-009 | GEAR KIT, OIL PUMP DRIVEN | 1 | $183.95 | |
| 28 | 3002-749 | SHIM,M7 | 1 | $2.06 | |
| 29 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 30 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 31 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
