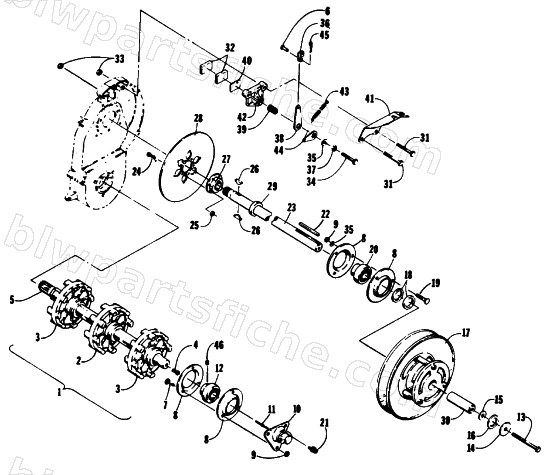

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
1990 PANTHER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-024 | TRACK DRIVE - SUB ASSY (MACHINED) | 1 | $271.95 | |
| 2 | 0102-297 | SPROCKET,8 TOOTH | 1 | $50.95 | |
| 3 | 0602-007 | SPROCKET,DRIVE | 1 | $59.95 | |
| 4 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 6 | 0423-109 | PIN,CP26 | 1 | $0.45 | |
| 7 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 8 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 9 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 10 | 0620-031 | ADAPTOR,DRIVE SPEEDOMETER | 1 | $109.95 | |
| 11 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 12 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 13 | 8012-142 | SCREW,CAP-HHNLP 5/16-18X3.25 G5 Z&Y | 1 | $1.95 | |
| 15 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 16 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 17 | 0726-015 | CLUTCH,DRIVEN | 1 | $594.95 | |
| 18 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 18 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 19 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 19 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 20 | 1602-290 | BEARING,1 W/LOCK(LARGE RACE) | 1 | $81.95 | |
| 21 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 22 | 0602-170 | KEY,DRIVEN CLUTCH | 1 | $2.47 | |
| 23 | 0602-038 | SHAFT,DRIVEN | 1 | $208.95 | |
| 24 | 0623-185 | SCREW,SOCKET HD 10-32X5/8 BLACK | 1 | $13.95 | |
| 25 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 26 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 27 | 0602-040 | HUB,BRAKE | 1 | $84.95 | |
| 28 | 0109-867 | DISC,BRAKE | 1 | $125.95 | |
| 31 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 32 | 0115-643 | PUCK,BRAKE | 1 | $22.01 | |
| 33 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 34 | 0124-302 | HHCS, 5/16-18X1 3/4 | 1 | $1.95 | |
| 35 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 36 | 0117-867 | CLEVIS | 1 | $37.95 | |
| 37 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 38 | 0117-865 | BRAKE ARM | 1 | $12.35 | |
| 39 | 0117-864 | SHAFT, BRAKE ACT. | 1 | $36.95 | |
| 40 | 0117-871 | PLATE, BACKNG PUCK | 1 | $42.95 | |
| 41 | 0117-790 | BRKT BRAKE CABLE | 1 | $5.89 | |
| 42 | 0219-282 | CASTING ACTUATOR-BRAKE | 1 | $97.95 | |
| 43 | 0117-792 | SPRING BRAKE RETURN | 1 | $1.64 | |
| 46 | 0623-216 | SCREW,SET 1/4-28X.25 TYPE G | 1 | $0.95 | |
| 46 | 0623-217 | SCREW,SET 1/4-20X.25 TYPE G | 1 | $0.35 |
