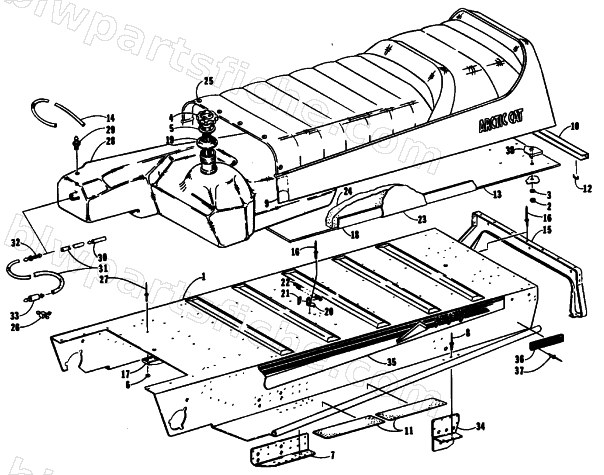

1990 Arctic Cat PANTHER — TUNNEL, GAS TANK, AND SEAT
1990 PANTHER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-139 | TUNNEL ASSY | 1 | $936.95 | |
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 4 | 0670-136 | CAP,GAS W/GAUGE | 1 | $84.95 | |
| 5 | 0670-119 | SEAL,SPILL-GAS CAP | 1 | $11.95 | |
| 6 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 7 | 0606-255 | PLATE,MOUNTING-SUSPENSION,FRONT LH | 1 | $38.95 | |
| 7 | 0606-256 | PLATE,MOUNTING-SUSPENSION,FRONT RH | 1 | $46.95 | |
| 8 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 10 | 0606-427 | TRIM,SEAT BASE BOARD-REAR | 1 | $5.95 | |
| 14 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 15 | 0114-901 | PLATE, END | 1 | $103.95 | |
| 16 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 19 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 20 | 0116-949 | BRACKET,GAS TANK-MTG | 1 | $4.95 | |
| 22 | 0123-808 | SPRING,EXT HOOK-.28DX4 FL | 1 | $3.95 | |
| 23 | 0706-568 | COVER,SEAT-PANTHER-WITH ARCTIC | 1 | $591.95 | |
| 25 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 27 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 29 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 30 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 31 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 31 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 32 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 33 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 34 | 0706-200 | BRKT,SUSPENSION-WELDED | 1 | $74.95 | |
| 34 | 0706-201 | BRKT,SUSPENSION-WELDED | 1 | $74.95 | |
| 36 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 37 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 38 | 0106-869 | PLATE WELD REINFORCE SEAT | 1 | $32.95 |
