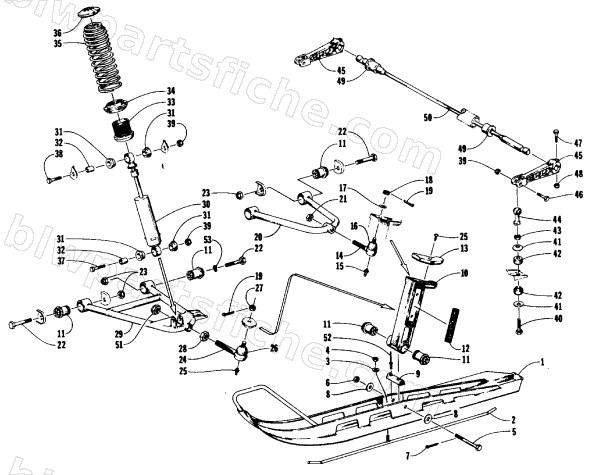

1990 Arctic Cat PROWLER — SKI AND FRONT SUSPENSION
1990 PROWLER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0703-027 | SKAG,PTD BLK | 1 | $27.95 | |
| 3 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 4 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 5 | 0623-171 | SCREW,CAP 1/2-13 X 5.0 W/HOLE | 1 | $13.95 | |
| 6 | 0623-172 | NUT,HEX-SLOTTED-THK 1/2-13 | 1 | $38.95 | |
| 7 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 8 | 8050-342 | WASHER,FLAT- 1/2 X 1.250 X .100 Z&Y | 1 | $1.37 | |
| 10 | 0703-170 | SPINDLE,RH ASS'Y | 1 | $430.95 | |
| 10 | 0703-171 | SPINDLE,LH ASS'Y | 1 | $485.95 | |
| 11 | 0603-087 | BUSHING, SILENTBLOC FLANGED | 1 | $57.95 | |
| 12 | 0611-698 | DECAL, ARCTIC CAT 6" SILVER | 1 | $2.10 | |
| 13 | 0603-183 | CAP,SPINDLE-LH | 1 | $3.95 | |
| 15 | 1623-654 | FITING,GREASE-1/4-28 STR-THRD FORM | 1 | $1.64 | |
| 16 | 0603-148 | BOOT,DUST-BALL JOINT | 1 | $17.95 | |
| 17 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 18 | 0623-173 | NUT,HEX-SLOTTED 3/8-24 UNF | 1 | $51.95 | |
| 19 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 20 | 0703-101 | ARM,FRT-UPPER W/BUSHINGS | 1 | $188.95 | |
| 21 | 0623-176 | NUT,JAM 1/2-20 | 1 | $1.92 | |
| 22 | 8002-411 | SCREW,CAP-HH 1/2-13 X3.00 G5 Z&Y | 1 | $1.95 | |
| 23 | 8040-606 | NUT,HEX LOCK-NYL 1/2-13 Z&Y | 1 | $0.95 | |
| 25 | 0623-226 | SCREW,SELF TAP- #10-32 X 7/8 TYPE F B | 1 | $0.35 | |
| 27 | 0623-174 | NUT,HEX-SLOTTED 7/16-20 UNF | 1 | $54.95 | |
| 28 | 0623-160 | NUT,JAM 3/4-16 UNF | 1 | $2.47 | |
| 29 | 0703-074 | ARM,FRT-LWR W/BUSHINGS-RH | 1 | $457.95 | |
| 29 | 0703-098 | ARM,FRT-LWR W/BUSHINGS-RH | 1 | $351.95 | |
| 29 | 0703-075 | ARM,FRT-LWR W/BUSHINGS-LH | 1 | $337.95 | |
| 29 | 0703-749 | ASSY,BALLJOINT(0603-119REPLACEMENT)-LH | 1 | $430.95 | |
| 30 | 0603-100 | SHOCK ABSORBER,FRT SU | 1 | $187.95 | |
| 31 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 32 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 33 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 34 | 0603-146 | NUT,RETAINER-SHOCK | 1 | $75.95 | |
| 35 | 0603-152 | SPRING,COMPRESSION-FRT SUSP | 1 | $118.95 | |
| 36 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 38 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 39 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 40 | 0623-159 | SCREW,CAPHEX 3/8-24 X 2.5 | 1 | $1.39 | |
| 41 | 0603-142 | RETAINER,BUSHING-SWAY BAR | 1 | $4.95 | |
| 42 | 0603-143 | BUSHING,SWAY BAR | 1 | $6.95 | |
| 43 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 44 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 45 | 0603-140 | ARM,SWAY BAR-PTD BLK | 1 | $108.95 | |
| 47 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 49 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 50 | 0703-185 | SWAY BAR-3/8" (PAINTED) | 1 | $180.95 | |
| 52 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 53 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 |
