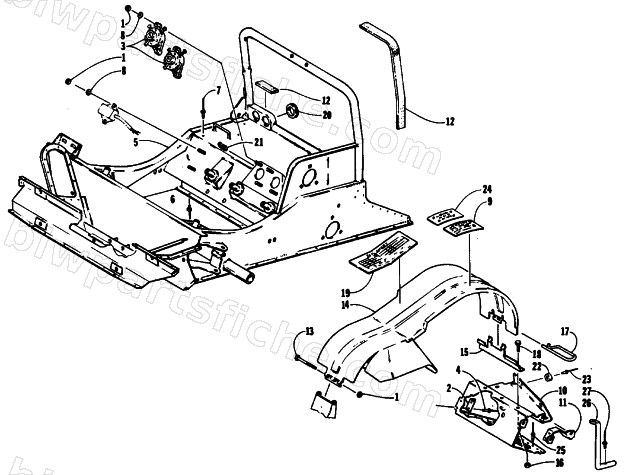

1990 Arctic Cat WILDCAT 650 MOUNTAIN CAT — FRONT FRAME AND FOOTREST ASSEMBLY
1990 WILDCAT 650 MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 0670-058 | FUEL PUMP-ASSEMBLY (DF52-97) | 1 | $99.59 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 0707-055 | FRONT END-WELDMENT | 1 | $1,082.95 | |
| 6 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 7 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 0706-403 | FOOTREST-REINFORCE LH | 1 | $75.95 | |
| 10 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 13 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 14 | 0707-028 | SHIELD,CLUTCH-WELD | 1 | $219.95 | |
| 17 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 18 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 20 | 0606-449 | GROMMET,COOLANT TUBE MTG | 1 | $3.95 | |
| 21 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 22 | 0606-513 | BUMPER,FOOTREST/HOOD | 1 | $3.95 | |
| 23 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 24 | 0611-704 | DECAL,CAUTION-CARB DRAIN | 1 | $11.95 | |
| 25 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 27 | 8060-424 | RIVET,BLIND-DH AA53 BLK | 1 | $0.95 |
