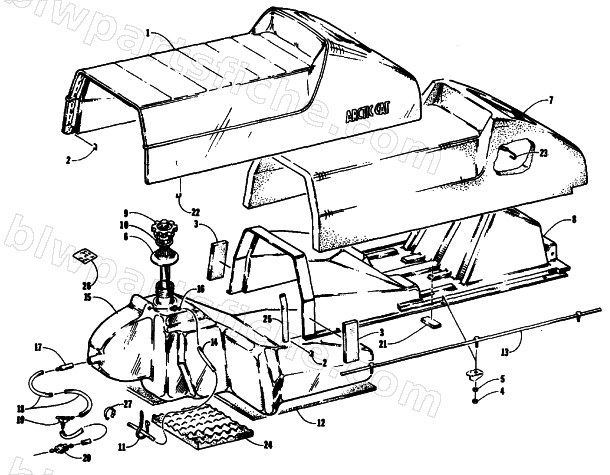

1990 Arctic Cat WILDCAT 650 MOUNTAIN CAT — SEAT AND GAS TANK ASSEMBLIES
1990 WILDCAT 650 MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0617-062 | FOAM,SEAT BASE-1/2X2X4.25 | 1 | $2.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 6 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 7 | 0706-277 | CUSHION, FOAM | 1 | $279.95 | |
| 8 | 0606-421 | BASE,SEAT-PLASTIC | 1 | $297.95 | |
| 9 | 0670-135 | CAP,GAS W/GAUGE | 1 | $88.95 | |
| 10 | 0670-119 | SEAL,SPILL-GAS CAP | 1 | $11.95 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0617-080 | PAD,GASTANK-BOTTOM | 1 | $13.95 | |
| 14 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 16 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 17 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 18 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 18 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 19 | 0670-125 | VALVE,SHUT-OFF (90 DEG -THREADED) | 1 | $49.95 | |
| 20 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 21 | 0115-409 | FOAM PAD 2.75 X 1.0 X .38 | 1 | $1.95 | |
| 24 | 0617-081 | PAD,FOAM-AIR SILENCER-DIMPLED | 1 | $11.95 | |
| 26 | 0611-709 | DECAL,FUEL SHUT-OFF | 1 | $6.95 | |
| 27 | 0623-242 | CLAMP,VENT LINE BC875-187 | 1 | $0.95 | |
| 28 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 |
