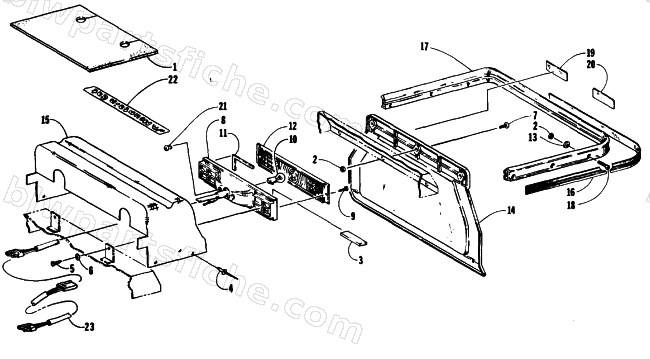

1990 Arctic Cat WILDCAT 650 MOUNTAIN CAT — TAILLIGHT AND REAR BUMPER
1990 WILDCAT 650 MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 5 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 6 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 7 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 8 | 0709-033 | TAILLIGHT ASSY,HSG & SKT | 1 | $150.95 | |
| 9 | 0124-080 | SCREW,PAN HD-7X5/8 CR | 1 | $0.95 | |
| 10 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 11 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 0606-505 | SNOWFLAP-30 DG CHROME-PLASTIC | 1 | $91.95 | |
| 15 | 0606-615 | COVER,REAR-PLASTIC | 1 | $210.95 | |
| 17 | 0706-458 | BUMPER,REAR | 1 | $102.95 | |
| 18 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 20 | 0212-271 | DECAL,CAUTION TOWING | 1 | $8.95 | |
| 21 | 0117-056 | LENS,TOOLBOX | 1 | $10.97 | |
| 23 | 0686-054 | HARNESS,EXTENSION-MC TAILLIGHT | 1 | $43.95 |
