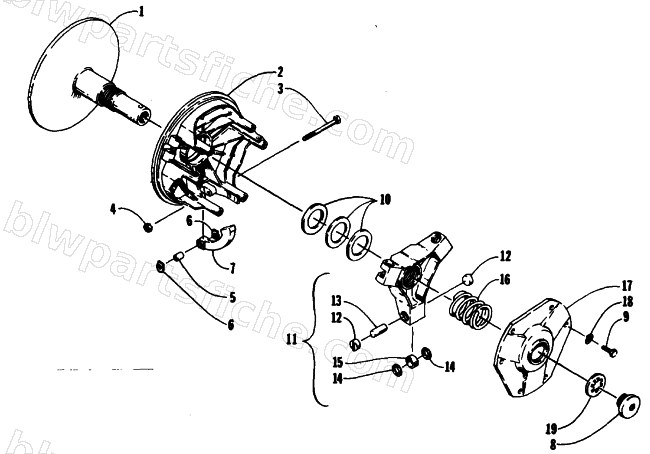

DRIVE CLUTCH
1990 WILDCAT 650
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0136-229 | KIT,ROLLER | 1 | $187.95 | |
| 1 | 0646-110 | SHEAVE,STATIONARY-COMET | 1 | $365.95 | |
| 2 | 0646-122 | SHEAVE, MOVABLE W/BEARING | 1 | $280.95 | |
| 5 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 6 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 7 | 0746-539 | ARM,CAM-W/BRG-53.0 GRAM | 1 | $16.49 | |
| 7 | 0746-527 | ARM,CAM-50.5 GRAM W/BRNG | 1 | $16.49 | |
| 7 | 0746-501 | ARM,CAM W/BRG 48.5 | 1 | $23.39 | |
| 8 | 0646-113 | CAP,RETAINER-COMET CLUTCH | 1 | $27.95 | |
| 9 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 10 | 0146-452 | SPACER | 1 | $4.95 | |
| 12 | 0146-457 | BUTTON, WEAR | 1 | $14.95 | |
| 13 | 0146-454 | PIN | 1 | $6.95 | |
| 15 | 0146-456 | ROLLER W/BRNG | 1 | $66.95 | |
| 16 | 0646-083 | SPRING,CLUTCH-RED/WHITE(COMET) | 1 | $49.95 | |
| 17 | 0646-092 | PLATE, COVER W/BEARI | 1 | $88.95 | |
| 18 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 19 | 0646-114 | WASHER,INTERNAL LOCK-HD-7/8 | 1 | $1.64 | |
| 72584 | 0725-183 | CLUTCH, DRIVE-ASSY (0725-084) | 1 | $1,045.95 |
