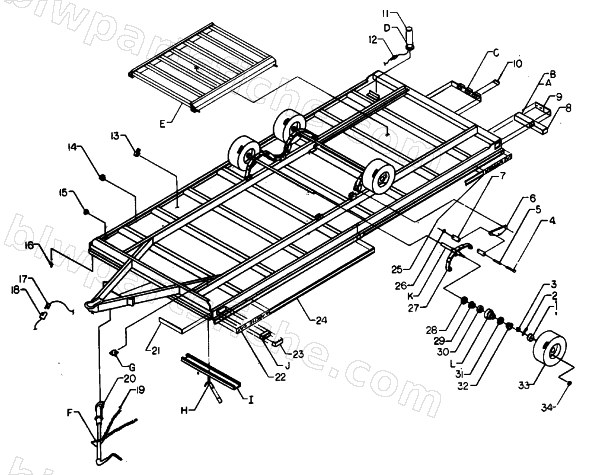

1991 Arctic Cat CAT CARRIER CC180 H.D. — TRAILER - CC180 H.D.
1991 CAT CARRIER CC180 H.D.
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0696-073 | LIGHT, LICENSE PLT | 1 | $27.49 | |
| 0 | 0696-050 | JACK TOP WIND 2 | 1 | $76.59 | |
| 0 | 0696-001 | HOLDDOWN BAR, 44 | 1 | $36.19 | |
| 4 | 0696-021 | BOLT,SHACKLE | 1 | $2.15 | |
| 6 | 0696-079 | EQUALIZER, TANDEM | 1 | $19.59 | |
| 7 | 0696-080 | LINK,2 -TANDEM SHACKLE | 1 | $1.37 | |
| 8 | 0696-012 | LENS,SIDE TAILLIGHT-SQUARE | 1 | $14.95 | |
| 10 | 0696-035 | LENS, 3-BAR LIGHT | 1 | $14.95 | |
| 11 | 0696-081 | LENS,LICENSE PLT LT | 1 | $3.74 | |
| 12 | 0696-082 | SCOTCHLOC | 1 | $1.08 | |
| 17 | 0696-040 | HARNESS, WIRING-28'-4 WIRE | 1 | $22.79 | |
| 21 | 0696-027 | GUARD,STONE | 1 | $9.81 | |
| 23 | 0696-088 | LENS,SIDE CLEARANCE-AMBER PC9167 | 1 | $7.62 | |
| 24 | 0611-519 | DECAL,STRIPE-TRAILER | 1 | $19.39 | |
| 28 | 0696-090 | GREASE SEAL, INNER | 1 | $4.03 | |
| 29 | 0696-091 | BEARING, INNER | 1 | $16.39 | |
| 30 | 0696-092 | RACE, INNER | 1 | $7.64 | |
| 31 | 0696-033 | RACE - L44610 | 1 | $5.33 | |
| 32 | 0696-037 | BEARING-1 1/16 | 1 | $13.79 | |
| 33 | 0696-052 | R/B 0697-003 | 1 | $193.65 |
