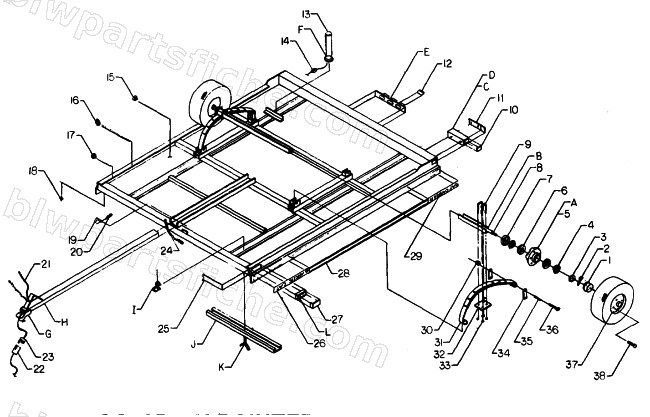

1991 Arctic Cat CAT CARRIER CC80D — TRAILER - CC80D, CC80DG - 8'
1991 CAT CARRIER CC80D
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0696-020 | HUB ASSY,BT100 | 1 | $57.79 | |
| 0 | 0696-026 | AXLE-W/SPINDLES | 1 | $157.95 | |
| 0 | 0696-073 | LIGHT, LICENSE PLT | 1 | $27.49 | |
| 0 | 0696-097 | COUPLER,1-7/8 -3 TUBE | 1 | $27.49 | |
| 0 | 0696-098 | TONGUE ASS'Y | 1 | $181.95 | |
| 0 | 0696-001 | HOLDDOWN BAR, 44 | 1 | $36.19 | |
| 6 | 0696-033 | RACE - L44610 | 1 | $5.33 | |
| 7 | 0696-034 | SEAL,GREASE-1 | 1 | $3.16 | |
| 9 | 0696-043 | U-BOLT, SQUARE - 3/8-24 | 1 | $11.95 | |
| 10 | 0696-012 | LENS,SIDE TAILLIGHT-SQUARE | 1 | $14.95 | |
| 12 | 0696-035 | LENS, 3-BAR LIGHT | 1 | $14.95 | |
| 13 | 0696-081 | LENS,LICENSE PLT LT | 1 | $3.74 | |
| 14 | 0696-082 | SCOTCHLOC | 1 | $1.08 | |
| 20 | 0696-016 | PIN,CLIP | 1 | $1.08 | |
| 24 | 0696-102 | CHAIN, TONGUE SAFETY-13 /HOOK | 1 | $5.71 | |
| 25 | 0696-027 | GUARD,STONE | 1 | $9.81 | |
| 27 | 0696-088 | LENS,SIDE CLEARANCE-AMBER PC9167 | 1 | $7.62 | |
| 28 | 0611-519 | DECAL,STRIPE-TRAILER | 1 | $19.39 | |
| 32 | 0696-104 | U-BOLT PLATE 3/8 | 1 | $5.33 | |
| 33 | 8040-516 | NUT,HEX LOCK-NYL 3/8-24 Z&Y | 1 | $0.68 | |
| 34 | 0696-023 | SHACKLE,SPRING | 1 | $2.15 | |
| 36 | 0696-021 | BOLT,SHACKLE | 1 | $2.15 |
