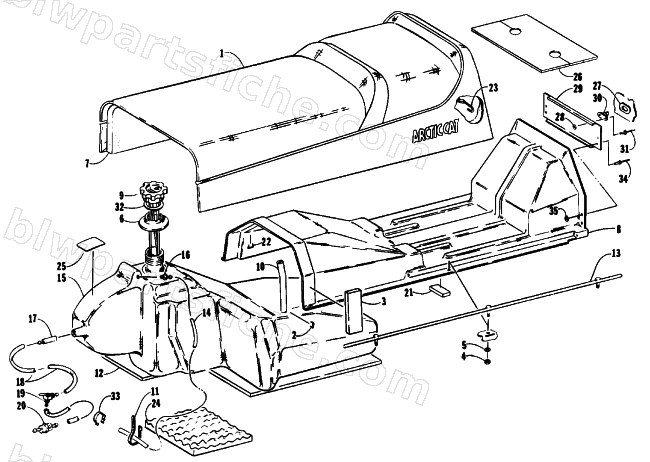

1991 Arctic Cat CHEETAH TOURING — GAS TANK, SEAT AND TOOLBOX
1991 CHEETAH TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-586 | COVER,SEAT-W/GRN ARCTIC CAT | 1 | $742.95 | |
| 3 | 0617-062 | FOAM,SEAT BASE-1/2X2X4.25 | 1 | $2.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 6 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 7 | 0706-409 | SEAT FOAM | 1 | $205.95 | |
| 8 | 0606-564 | BASE,SEAT-2 UP | 1 | $312.95 | |
| 9 | 0670-135 | CAP,GAS W/GAUGE | 1 | $88.95 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0617-080 | PAD,GASTANK-BOTTOM | 1 | $13.95 | |
| 14 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 16 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 17 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 18 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 18 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 19 | 0670-125 | VALVE,SHUT-OFF (90 DEG -THREADED) | 1 | $49.95 | |
| 20 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 21 | 0115-409 | FOAM PAD 2.75 X 1.0 X .38 | 1 | $1.95 | |
| 24 | 0617-081 | PAD,FOAM-AIR SILENCER-DIMPLED | 1 | $11.95 | |
| 25 | 0611-709 | DECAL,FUEL SHUT-OFF | 1 | $6.95 | |
| 27 | 0623-193 | EYELET,1/4 TURN-TOOLBOX DOOR | 1 | $1.95 | |
| 28 | 0623-194 | WASHER,1/4 TURN-TOOLBOX DOOR | 1 | $0.95 | |
| 30 | 0623-192 | 1/4 TURN-TOOLBOX DOOR (SINGLE CURTAIN) | 1 | $12.35 | |
| 31 | 0623-263 | RIVET,COUNTERSUNK .125 | 1 | $0.55 | |
| 32 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 33 | 0623-242 | CLAMP,VENT LINE BC875-187 | 1 | $0.95 | |
| 34 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 35 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 |
