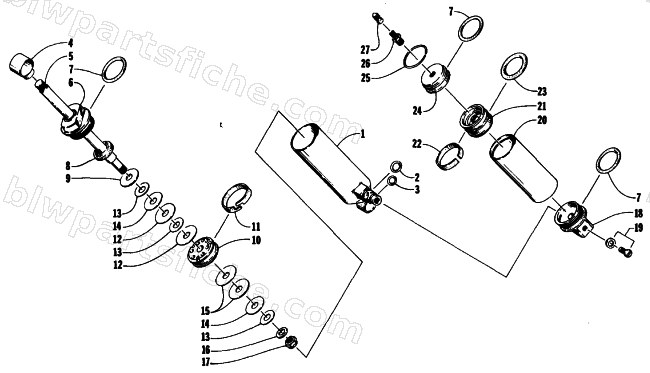

1991 Arctic Cat EXT SPECIAL — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
1991 EXT SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-211 | SHOCK ABSORBER ASS'Y-FRONT ARM | 1 | $964.95 | |
| 1 | 0604-515 | BODY,SHOCK-FOX 4.800 IN. | 1 | $194.95 | |
| 2 | 0604-511 | O RING-RESEVOIR MT. | 1 | $3.95 | |
| 3 | 0604-514 | O RING-RESEVOIR MT. | 1 | $4.95 | |
| 4 | 0604-517 | EYELET,REARSHOCK | 1 | $110.95 | |
| 6 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 7 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 | |
| 8 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 9 | 0603-387 | WASHER (FOX-TOP OUT PLATE) | 1 | $2.95 | |
| 10 | 0604-531 | PISTON, .067 ORIFICE | 1 | $124.95 | |
| 11 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 12 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 13 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 14 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 15 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 16 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 17 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 19 | 0604-530 | SCREW & WASHER | 1 | $3.95 | |
| 20 | 0604-528 | BODY,RESERVIOR-3.8 LG. | 1 | $90.95 | |
| 21 | 0603-392 | PISTON,RESERVOIR | 1 | $93.95 | |
| 22 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 23 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 24 | 0603-390 | ENDCAP,RESERVIOR (HOSE SIDE) | 1 | $106.95 | |
| 25 | 0604-521 | RING, RETAINING - RESERVOIR | 1 | $5.78 | |
| 26 | 0603-299 | FITTING,STRAIGHT | 1 | $30.95 | |
| 27 | 0603-395 | CAP,VALVE FITTING | 1 | $15.11 |
