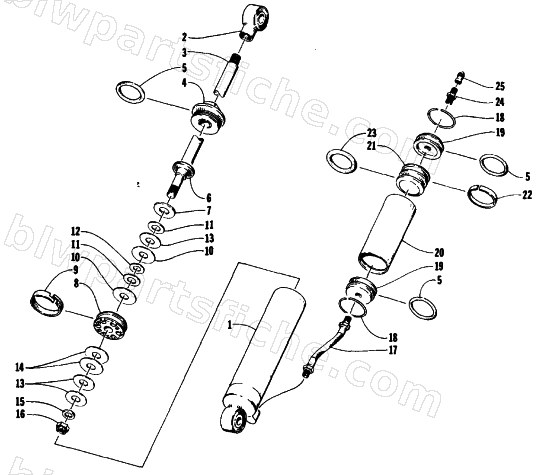

1991 Arctic Cat EXT SPECIAL — REAR SUSPENSION REAR ARM SHOCK ABSORBER
1991 EXT SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-516 | BODY,SHOCK-FOX 6.830 IN. | 1 | $282.95 | |
| 2 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 3 | 0604-519 | ROD,SHOCK-FOX { 7.55" } | 1 | $204.95 | |
| 4 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 5 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 | |
| 6 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 7 | 0603-387 | WASHER (FOX-TOP OUT PLATE) | 1 | $2.95 | |
| 8 | 0603-388 | PISTON,.070 ORFICE | 1 | $147.95 | |
| 9 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 10 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 11 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 12 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 13 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 14 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 15 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 16 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 17 | 0604-447 | HOSE,RES TO RR SHOCK | 1 | $142.95 | |
| 18 | 0604-521 | RING, RETAINING - RESERVOIR | 1 | $5.78 | |
| 19 | 0603-390 | ENDCAP,RESERVIOR (HOSE SIDE) | 1 | $106.95 | |
| 20 | 0603-391 | BODY,RESERVOIR-5" STEEL (227-03-002) | 1 | $362.95 | |
| 21 | 0603-392 | PISTON,RESERVOIR | 1 | $93.95 | |
| 22 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 23 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 24 | 0603-299 | FITTING,STRAIGHT | 1 | $30.95 | |
| 25 | 0603-395 | CAP,VALVE FITTING | 1 | $15.11 |
