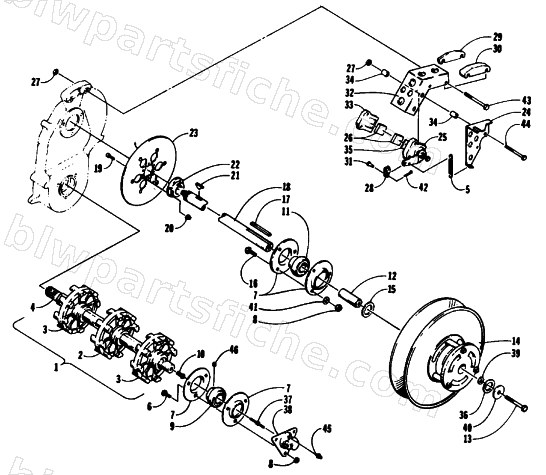

1991 Arctic Cat JAG AFS LONG TRACK — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
1991 JAG AFS LONG TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-024 | TRACK DRIVE - SUB ASSY (MACHINED) | 1 | $271.95 | |
| 2 | 0102-297 | SPROCKET,8 TOOTH | 1 | $50.95 | |
| 3 | 0602-007 | SPROCKET,DRIVE | 1 | $59.95 | |
| 5 | 0115-602 | SPRING,BRAKE ARM RETURN | 1 | $47.95 | |
| 6 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 7 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 10 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 11 | 1602-290 | BEARING,1 W/LOCK(LARGE RACE) | 1 | $81.95 | |
| 13 | 8002-142 | SCREW,CAP-HH 5/16-18 X3.25 G5 Z&Y | 1 | $0.65 | |
| 14 | 0726-015 | CLUTCH,DRIVEN | 1 | $594.95 | |
| 15 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 15 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 16 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 17 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 18 | 0602-344 | SHAFT,DRIVEN | 1 | $201.95 | |
| 20 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 21 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 22 | 0602-272 | HUB,BRAKE | 1 | $129.95 | |
| 23 | 0109-867 | DISC,BRAKE | 1 | $125.95 | |
| 24 | 0115-610 | BRKT, BRKE CBL MNT | 1 | $22.01 | |
| 26 | 0115-603 | PUCK,BRAKE | 1 | $21.95 | |
| 27 | 0124-060 | NUT,CROWNLOCK 3/8-16 UNC Z&Y | 1 | $0.85 | |
| 28 | 0117-867 | CLEVIS | 1 | $37.95 | |
| 29 | 0115-586 | SPACER,BRAKE BRACKET | 1 | $16.95 | |
| 30 | 0115-587 | SPACER,BRAKE BRACKET | 1 | $21.95 | |
| 31 | 0423-109 | PIN,CP26 | 1 | $0.45 | |
| 32 | 0115-583 | BRKT,MTG BRAKE-WELD'T. | 1 | $126.95 | |
| 33 | 0115-584 | CALIPER,STATIONARY CASTING | 1 | $62.95 | |
| 34 | 0115-585 | SPACER,BRAKE CALIPER | 1 | $16.95 | |
| 36 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 37 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 38 | 0620-031 | ADAPTOR,DRIVE SPEEDOMETER | 1 | $109.95 | |
| 39 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 41 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 44 | 0124-079 | HHCS,3/8-16X3 1/2 GR5 | 1 | $26.95 | |
| 45 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 46 | 0623-216 | SCREW,SET 1/4-28X.25 TYPE G | 1 | $0.95 | |
| 46 | 0623-217 | SCREW,SET 1/4-20X.25 TYPE G | 1 | $0.35 |
