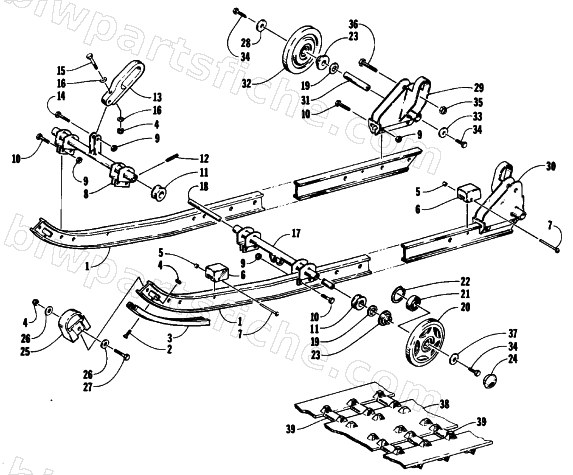

1991 Arctic Cat JAG AFS LONG TRACK — SLIDE RAIL AND TRACK ASSEMBLY
1991 JAG AFS LONG TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-098 | RAIL,SLIDE FORMED | 1 | $232.95 | |
| 2 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 3 | 0604-248 | WEARSTRIP,SLIDE RAIL | 1 | $32.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 6 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 7 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 8 | 1704-194 | CROSSBRACE,FRONT-PTD BLK | 1 | $117.95 | |
| 9 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 10 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 11 | 0604-582 | ROLLER/SLIDE,FRONT SPRING | 1 | $3.30 | |
| 12 | 8070-285 | PIN,SPRING-5/32 X 1-1/8 SLOTTED P&O | 1 | $1.95 | |
| 13 | 0114-324 | STOP,FRONT ARM | 1 | $39.95 | |
| 14 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 15 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 | |
| 16 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 17 | 1704-512 | CROSS BRACE,SHOCK MTG-PTD BLK | 1 | $271.95 | |
| 18 | 0604-245 | AXLE,INNER AUX-WHL-REAR | 1 | $89.95 | |
| 19 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 21 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 22 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 23 | 1604-774 | INSERT,5/8 BORE X 2" (LONG) | 1 | $6.34 | |
| 24 | 0604-246 | CAP,IDLER WHEEL-BLACK (DP 1500) | 1 | $3.16 | |
| 25 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 26 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 27 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 29 | 0704-246 | BRKT,MTG-REAR SLIDE RAIL-RH WLDMT | 1 | $142.95 | |
| 30 | 0704-247 | BRKT,MTG-REAR SLIDE RAIL-LH WLDMT | 1 | $140.95 | |
| 31 | 0604-342 | AXLE,BRKT-REAR SLIDE RAIL | 1 | $29.95 | |
| 32 | 0604-333 | WHEEL,IDLER-BLACK SPOKED | 1 | $41.59 | |
| 33 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 34 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 35 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 37 | 0123-474 | WASHER,FLAT 21/64X1-1/4 | 1 | $2.95 | |
| 38 | 0602-252 | TRACK,15X2.52X7.5X151.2 | 1 | $869.95 | |
| 39 | 0102-255 | CLIP,GUIDE-TRACK | 1 | $2.95 |
