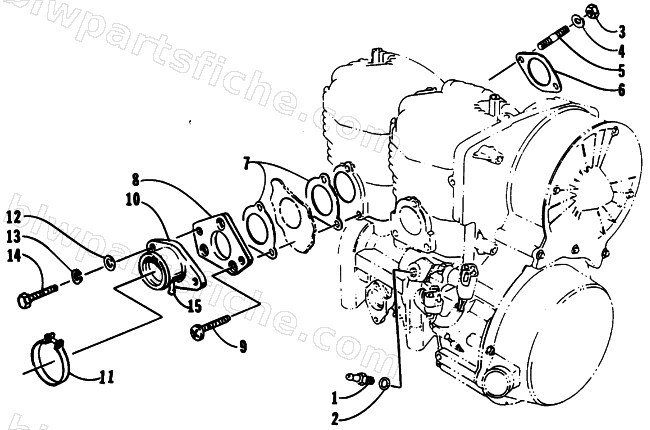

1991 Arctic Cat JAG AFS SPECIAL — INTAKE ASSEMBLY
1991 JAG AFS SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-040 | UNION,HOSE M9 | 1 | $10.95 | |
| 2 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 3 | 3007-416 | NUT | 1 | $2.75 | |
| 4 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 5 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 6 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 7 | 3005-952 | GASKET, INTAKE MANIFOLD | 1 | $19.25 | |
| 8 | 0670-158 | PLATE,ADAPTER-CARB BOOT | 1 | $36.95 | |
| 9 | 0623-299 | SCREW,FLAT HEAD M6X1.0X20 PHILIPS | 1 | $0.65 | |
| 10 | 3003-587 | FLANGE,CARB-34MM | 1 | $82.95 | |
| 11 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 12 | 3423-204 | WASHER | 1 | $1.95 | |
| 14 | 0623-300 | SCREW,CAP HEX M8X1.25X20 | 1 | $0.95 | |
| 15 | 3003-597 | NOZZLE,INJECTION | 1 | $13.73 |
