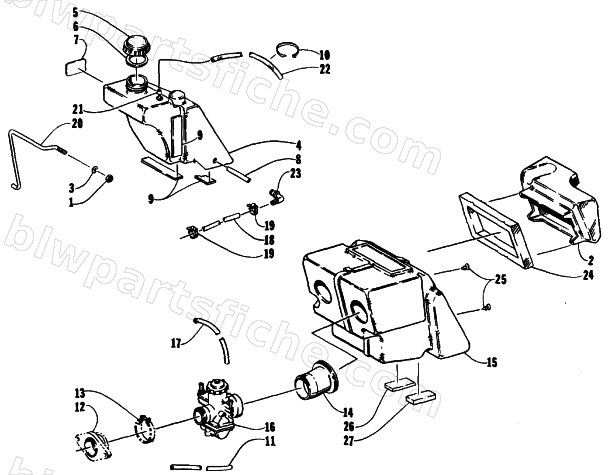

1991 Arctic Cat JAG AFS SPECIAL — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1991 JAG AFS SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 2 | 0670-074 | PLENUM,AIR INTAKE | 1 | $91.95 | |
| 3 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 5 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 7 | 0611-384 | DECAL,OIL TANK | 1 | $6.95 | |
| 8 | 0670-079 | EXTENSION,OIL TANK FITTING | 1 | $14.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 12 | 3003-587 | FLANGE,CARB-34MM | 1 | $82.95 | |
| 13 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 14 | 0670-080 | BOOT,AIR/CARB-VM34 | 1 | $34.95 | |
| 15 | 0770-056 | SILENCER,AIR-ASSY-MANUF | 1 | $136.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 18 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 19 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 21 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 22 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 23 | 0670-075 | FITTING,ELBOW | 1 | $4.54 | |
| 25 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 26 | 0115-409 | FOAM PAD 2.75 X 1.0 X .38 | 1 | $1.95 | |
| 27 | 0115-408 | FOAM PAD 2.75 X 1.0 X .50 | 1 | $1.95 |
