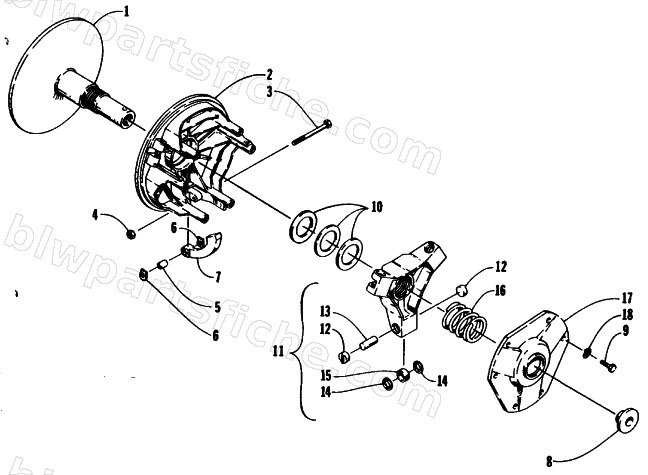

1991 Arctic Cat JAG MOUNTAIN CAT — DRIVE CLUTCH
1991 JAG MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0136-229 | KIT,ROLLER | 1 | $187.95 | |
| 1 | 0746-043 | CLUTCH,DRIVE-UNCALIBRATED-ASSY(108 COMET | 1 | $909.95 | |
| 2 | 0646-122 | SHEAVE, MOVABLE W/BEARING | 1 | $280.95 | |
| 5 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 6 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 7 | 0746-502 | ARM,CAM W/BRG 44.5 | 1 | $16.49 | |
| 7 | 0646-019 | ARM COMET CL H.A. | 1 | $56.95 | |
| 7 | 0646-030 | RAMP,CLUTCH 41.0 | 1 | $55.95 | |
| 8 | 0646-111 | WASHER,PILOT-COMET CLUTCH | 1 | $31.95 | |
| 9 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 10 | 0646-088 | WASHER,SPACER COMET CLUTCH | 1 | $2.47 | |
| 12 | 0146-457 | BUTTON, WEAR | 1 | $14.95 | |
| 13 | 0146-454 | PIN | 1 | $6.95 | |
| 15 | 0146-456 | ROLLER W/BRNG | 1 | $66.95 | |
| 17 | 0646-092 | PLATE, COVER W/BEARI | 1 | $88.95 | |
| 18 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 |
