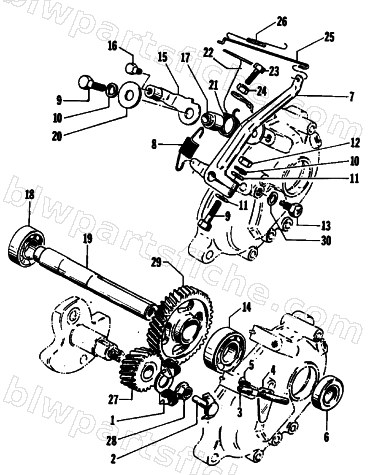

GOVERNOR
1991 KITTY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-619 | CENTRIFUGAL | 1 | $27.95 | |
| 2 | 3002-509 | SHIFTER | 1 | $19.95 | |
| 3 | 3002-510 | SHAFT,THROTTLE RETURN | 1 | $40.95 | |
| 4 | 3002-511 | PLATE,THROTTLE RETURN | 1 | $4.95 | |
| 5 | 3006-542 | SCREW,M3X5X6-ZN | 1 | $1.92 | |
| 6 | 3002-462 | SEAL,OIL M17-RH | 1 | $15.11 | |
| 7 | 3002-512 | LEVER,THROTTLE CONTROL | 1 | $22.95 | |
| 8 | 3002-615 | SPRING EXTEN W/HOOKS,PULL,M9 | 1 | $5.37 | |
| 9 | 3004-641 | BOLT | 1 | $1.79 | |
| 10 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 11 | 3003-023 | WASHER, FLAT,5MM | 1 | $1.95 | |
| 12 | 0693-489 | NUT,6MM | 1 | $3.95 | |
| 13 | 3423-792 | BOLT,6X10 | 1 | $3.16 | |
| 14 | 3003-380 | BEARING, LH, GOVERNOR ASSEMBLY(BALL)(15X | 1 | $39.95 | |
| 15 | 3002-620 | LEVER,THROTTLE CABLE | 1 | $22.95 | |
| 16 | 3005-439 | BOLT, HEX M5X.8X8 G2 ZN | 1 | $2.95 | |
| 17 | 3002-459 | SPACER,M6 | 1 | $4.95 | |
| 18 | 3003-320 | BEARING,BALL,RIGHT,M17X40X12 | 1 | $34.95 | |
| 19 | 3002-518 | SHAFT PRIMARY DRIVEN | 1 | $88.95 | |
| 20 | 3004-050 | WASHER,6MM | 1 | $3.16 | |
| 21 | 0694-038 | SPRING, '02 120 F/C | 1 | $10.97 | |
| 22 | 3002-621 | BRKT,THROTTLE CABLE | 1 | $20.95 | |
| 23 | 3007-624 | BOLT | 1 | $2.95 | |
| 24 | 3007-572 | NUT,5MM | 1 | $2.47 | |
| 25 | 3002-515 | ROD,CARBURETOR | 1 | $5.37 | |
| 26 | 3002-466 | SPRING,EXTEN W/HOOKS,PULL,M3 | 1 | $13.95 | |
| 27 | 3002-516 | GEAR,PRIMARY DRIVE | 1 | $66.95 | |
| 28 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 29 | 3005-301 | GEAR, PRIMARY DRIVEN | 1 | $121.95 | |
| 30 | 3002-912 | WASHER,LOCK 6.1X12.2X1.5 | 1 | $2.06 |
