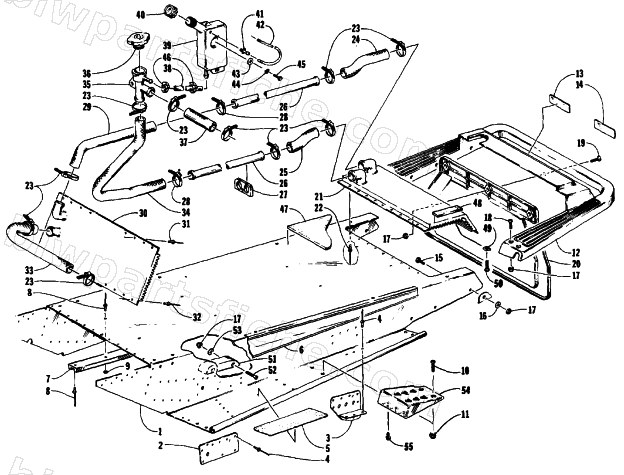

1991 Arctic Cat PANTERA — TUNNEL, COOLING, AND REAR BUMPER
1991 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-142 | TUNNEL ASSY | 1 | $547.95 | |
| 2 | 2706-277 | PLATE,BODY REINF-PTD BLK | 1 | $27.95 | |
| 3 | 0706-201 | BRKT,SUSPENSION-WELDED | 1 | $74.95 | |
| 3 | 0706-200 | BRKT,SUSPENSION-WELDED | 1 | $74.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 7 | 0706-582 | WEARSTRIP,TUNNEL | 1 | $41.95 | |
| 8 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 9 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 11 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 13 | 0212-133 | DECAL,TOWING CAUTION FRENCH | 1 | $8.95 | |
| 14 | 0212-271 | DECAL,CAUTION TOWING | 1 | $8.95 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-615 | SCREW,MACH-CRTH 1/4-20X1.50 G2 BE | 1 | $1.95 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 21 | 0706-564 | HEAT EXCHANGER, REAR-WELDMT | 1 | $226.95 | |
| 22 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 23 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 24 | 0610-040 | HOSE,RH TUBE TO REAR EXCH | 1 | $24.95 | |
| 25 | 0610-041 | HOSE,REAR EXCH TO LH TUBE | 1 | $21.95 | |
| 26 | 0606-468 | TUBE,HEAT EX. 39 | 1 | $55.95 | |
| 28 | 0623-168 | CLAMP,HOSE-1.375 | 1 | $6.34 | |
| 29 | 0610-039 | HOSE,FRT EXCH TO RH TUBE | 1 | $26.95 | |
| 30 | 0706-826 | HEAT EXCHANGER FRONT-WELDMENT | 1 | $206.95 | |
| 31 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 32 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 33 | 0610-038 | HOSE,PUMP TO FRT EXCH | 1 | $47.95 | |
| 34 | 0610-042 | HOSE,LH TUBE TO FILLER NECK | 1 | $51.95 | |
| 35 | 2606-859 | FILLER NECK | 1 | $38.95 | |
| 36 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 37 | 0610-037 | HOSE,FILLER NECK TO ENGINE | 1 | $23.95 | |
| 38 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 39 | 0606-470 | TANK,WATER-COOLANT | 1 | $42.95 | |
| 40 | 0670-035 | CAP,TANK-WATER | 1 | $16.49 | |
| 41 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 42 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 43 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 44 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 45 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 46 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 47 | 0617-097 | PAD,TOOL BOX | 1 | $14.95 | |
| 49 | 0623-076 | NUT,SQUARE 1/4-20 | 1 | $22.01 | |
| 50 | 8009-577 | SCREW,MACH-CRPH 1/4-20X.50 G2 Z&Y | 1 | $0.15 | |
| 51 | 0604-479 | GUIDE,TRACK | 1 | $13.73 | |
| 54 | 0606-699 | FOOTREST,REAR-L.H. | 1 | $33.95 | |
| 54 | 0606-698 | FOOTREST,REAR-R.H. | 1 | $33.95 |
