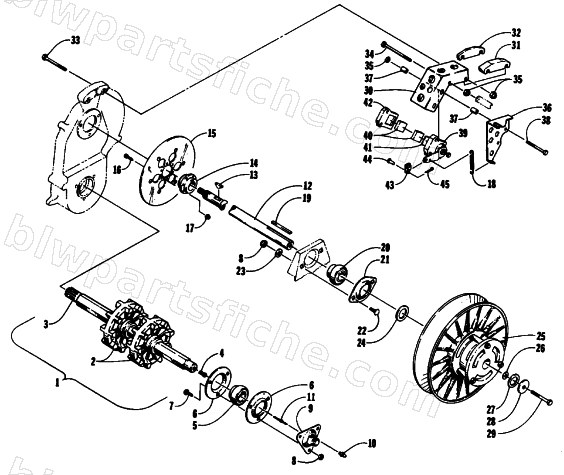

1991 Arctic Cat PROWLER MOUNTAIN CAT — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
1991 PROWLER MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0602-261 | SPROCKET,DRIVE-9T-INNER | 1 | $49.95 | |
| 4 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 5 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 6 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 7 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 0720-004 | ADAPTER,DRIVE-SPEEDO-FAB | 1 | $117.95 | |
| 10 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 11 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 12 | 0602-345 | SHAFT,DRIVEN | 1 | $196.95 | |
| 13 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 14 | 0602-272 | HUB,BRAKE | 1 | $129.95 | |
| 15 | 0109-867 | DISC,BRAKE | 1 | $125.95 | |
| 16 | 0623-185 | SCREW,SOCKET HD 10-32X5/8 BLACK | 1 | $13.95 | |
| 17 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 18 | 0115-602 | SPRING,BRAKE ARM RETURN | 1 | $47.95 | |
| 19 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 20 | 1602-290 | BEARING,1 W/LOCK(LARGE RACE) | 1 | $81.95 | |
| 21 | 0602-233 | FLANGE,BRG-TWO MTG HOLE | 1 | $4.26 | |
| 22 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 23 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 24 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 24 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 25 | 0726-023 | CLUTCH,DRIVEN | 1 | $648.95 | |
| 26 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 27 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 29 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 30 | 0115-583 | BRKT,MTG BRAKE-WELD'T. | 1 | $126.95 | |
| 31 | 0115-587 | SPACER,BRAKE BRACKET | 1 | $21.95 | |
| 32 | 0115-586 | SPACER,BRAKE BRACKET | 1 | $16.95 | |
| 34 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 35 | 0124-060 | NUT,CROWNLOCK 3/8-16 UNC Z&Y | 1 | $0.85 | |
| 36 | 0115-610 | BRKT, BRKE CBL MNT | 1 | $22.01 | |
| 37 | 0115-585 | SPACER,BRAKE CALIPER | 1 | $16.95 | |
| 38 | 0124-079 | HHCS,3/8-16X3 1/2 GR5 | 1 | $26.95 | |
| 40 | 0115-603 | PUCK,BRAKE | 1 | $21.95 | |
| 42 | 0115-584 | CALIPER,STATIONARY CASTING | 1 | $62.95 | |
| 43 | 0117-867 | CLEVIS | 1 | $37.95 | |
| 44 | 0423-109 | PIN,CP26 | 1 | $0.45 |
