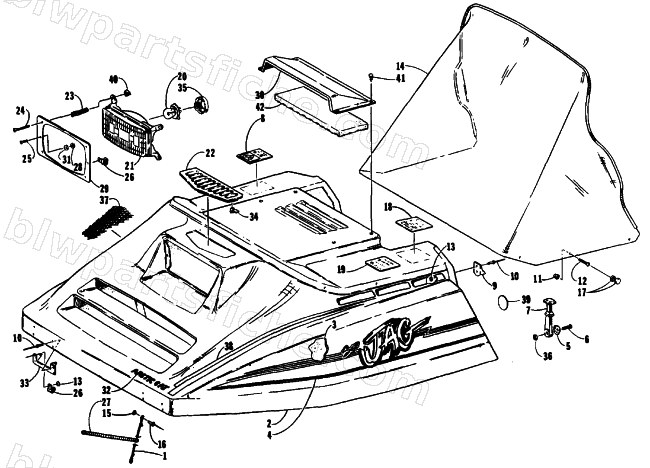

1991 Arctic Cat SUPER JAG — HOOD ASSEMBLY
1991 SUPER JAG
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0718-147 | HOOD | 1 | $1,045.95 | |
| 2 | 0718-137 | HOOD W/DECALS-91 SUP JAG | 1 | $1,045.95 | |
| 4 | 0611-862 | DECAL,HOOD-R.H. | 1 | $39.95 | |
| 4 | 0611-863 | DECAL,HOOD-L.H. | 1 | $39.95 | |
| 5 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 6 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 7 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 8 | 1611-042 | DECAL,SHIFT-ENGLISH | 1 | $16.95 | |
| 9 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 11 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 12 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 13 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 16 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 17 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 18 | 0212-154 | DECAL,ENGINE CAUTION | 1 | $18.95 | |
| 20 | 0109-735 | BULB,HEADLIGHT 12V60/6 | 1 | $24.95 | |
| 22 | 0106-738 | VENT, HOOD-TOP | 1 | $27.95 | |
| 23 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 24 | 0623-051 | SCREW,ADJUSTMENT 1.96 BLK ZINC | 1 | $0.95 | |
| 25 | 8009-430 | SCREW,MACH-CRPH 10-24X.75 G2 Z&BLK | 1 | $0.95 | |
| 26 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 27 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 28 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 29 | 0116-867 | HEADLIGHT BEZEL | 1 | $47.95 | |
| 30 | 0606-768 | PLENUM,AIR INTAKE-HOOD | 1 | $100.95 | |
| 31 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 32 | 0611-249 | DECAL,ARCTIC CAT-GREEN | 1 | $20.95 | |
| 33 | 0117-132 | HINGE HOOD UPPER | 1 | $13.73 | |
| 33 | 0117-133 | HINGE HOOD UPPER LH | 1 | $13.73 | |
| 34 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 35 | 0115-285 | HOLDER,CAP-HEADLAMP-STEEL | 1 | $18.95 | |
| 36 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 37 | 0706-126 | GUARD,VENT-SCREEN | 1 | $5.95 | |
| 38 | 0611-866 | DECAL,DECK-R.H. | 1 | $20.95 | |
| 38 | 0611-867 | DECAL,DECK-L.H. | 1 | $20.95 | |
| 40 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 | |
| 41 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 |
