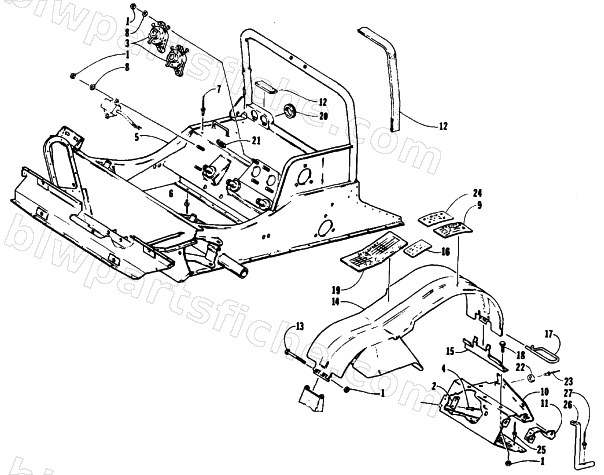

1991 Arctic Cat WILDCAT 700 — FRONT FRAME AND FOOTREST ASSEMBLY
1991 WILDCAT 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 0670-058 | FUEL PUMP-ASSEMBLY (DF52-97) | 1 | $99.59 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 0707-055 | FRONT END-WELDMENT | 1 | $1,082.95 | |
| 6 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 7 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 0706-403 | FOOTREST-REINFORCE LH | 1 | $75.95 | |
| 10 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 13 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 14 | 0707-067 | SHIELD,CLUTCH-ASSY-ALUM | 1 | $219.95 | |
| 16 | 0611-336 | DECAL,CAUTION-CARB & SWITCHES | 1 | $11.95 | |
| 17 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 18 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 19 | 0611-759 | DECAL,JET CHART | 1 | $6.95 | |
| 20 | 0606-449 | GROMMET,COOLANT TUBE MTG | 1 | $3.95 | |
| 21 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 22 | 0606-513 | BUMPER,FOOTREST/HOOD | 1 | $3.95 | |
| 23 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 24 | 0611-704 | DECAL,CAUTION-CARB DRAIN | 1 | $11.95 | |
| 25 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 27 | 8060-424 | RIVET,BLIND-DH AA53 BLK | 1 | $0.95 |
