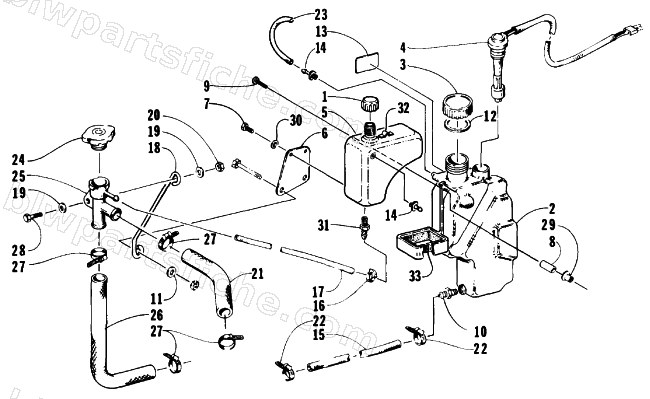

1991 Arctic Cat WILDCAT EFI MOUNTAIN CAT — COOLANT AND OIL TANK ASSEMBLIES
1991 WILDCAT EFI MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-035 | CAP,TANK-WATER | 1 | $16.49 | |
| 2 | 0670-170 | TANK,OIL/FUEL FILTER MNT | 1 | $134.95 | |
| 3 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 4 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 7 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 8 | 0670-124 | SPACER,SILENCER/OIL TANK | 1 | $3.30 | |
| 9 | 0623-204 | SCREW, MACH - PHPNH, #10-32X2.5 BLK | 1 | $0.95 | |
| 10 | 0670-118 | OUTLET,OILTANK-1/2 TUBE | 1 | $4.95 | |
| 11 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 12 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 13 | 0611-384 | DECAL,OIL TANK | 1 | $6.95 | |
| 14 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 15 | 0610-018 | HOSE 1/2 X15' | 1 | $257.95 | |
| 16 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 17 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 18 | 0606-218 | BRKT,MTG-FILLER | 1 | $22.01 | |
| 19 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0610-023 | HOSE,FILLER-ENGINE | 1 | $32.95 | |
| 22 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 23 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 24 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 25 | 2606-859 | FILLER NECK | 1 | $38.95 | |
| 26 | 0610-031 | HOSE,LH TUBE TO FILLER NECK | 1 | $54.95 | |
| 27 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 28 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 29 | 0623-084 | RIVET NUT,FLAT HEAD 10-32UNF X .130-.180 | 1 | $0.95 | |
| 30 | 8052-152 | WASHER,LOCK-NO.10 INTL TOOTH TYP A Z&Y | 1 | $0.15 | |
| 32 | 0623-014 | CLIP,OIL TANK BRKT | 1 | $3.95 |
