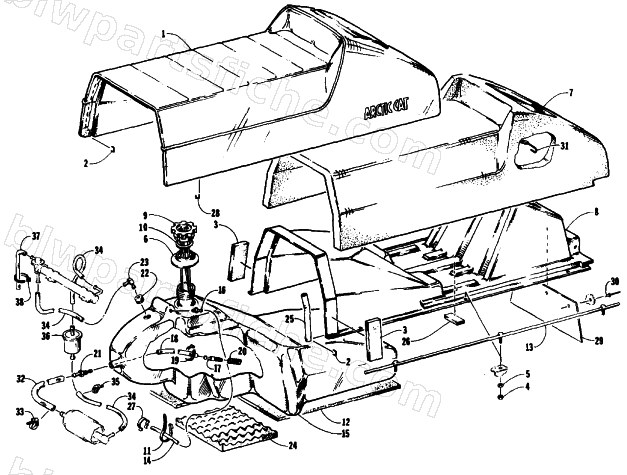

1991 Arctic Cat WILDCAT EFI MOUNTAIN CAT — SEAT AND GAS TANK ASSEMBLIES
1991 WILDCAT EFI MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0617-062 | FOAM,SEAT BASE-1/2X2X4.25 | 1 | $2.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 6 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 7 | 0706-277 | CUSHION, FOAM | 1 | $279.95 | |
| 8 | 0606-421 | BASE,SEAT-PLASTIC | 1 | $297.95 | |
| 9 | 0670-135 | CAP,GAS W/GAUGE | 1 | $88.95 | |
| 10 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0617-080 | PAD,GASTANK-BOTTOM | 1 | $13.95 | |
| 14 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 15 | 0770-058 | TANK,GAS-ASS'Y | 1 | $351.95 | |
| 16 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 17 | 0670-157 | STRAINER,GASTANK | 1 | $36.95 | |
| 19 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 20 | 0602-075 | SPRING,COMPRESSION | 1 | $12.35 | |
| 21 | 0670-156 | OUTLET,GASTANK | 1 | $41.95 | |
| 22 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 23 | 0670-162 | FITTING,RETURN-FUEL TANK | 1 | $56.95 | |
| 24 | 0617-081 | PAD,FOAM-AIR SILENCER-DIMPLED | 1 | $11.95 | |
| 26 | 0115-409 | FOAM PAD 2.75 X 1.0 X .38 | 1 | $1.95 | |
| 27 | 0623-242 | CLAMP,VENT LINE BC875-187 | 1 | $0.95 | |
| 30 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 33 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 34 | 3003-884 | HOSE (09356-75137-600) | 1 | $102.95 | |
| 36 | 3003-863 | FILTER ASSY,FUEL | 1 | $202.95 | |
| 37 | 3003-899 | HOSE,AIR VENT | 1 | $25.95 | |
| 38 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 |
