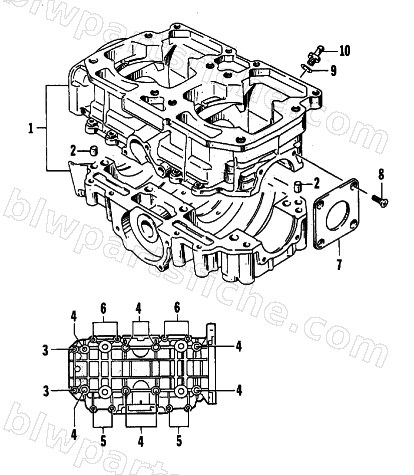

1991 Arctic Cat WILDCAT EFI — CRANKCASE ASSEMBLY
1991 WILDCAT EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-940 | CRANKCASE ASS'Y (700 L/C) | 1 | $1,192.95 | |
| 2 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 3 | 3002-930 | BOLT,HEX FLGD M8X75 ZN | 1 | $3.95 | |
| 4 | 3004-425 | BOLTM10X85 | 1 | $4.95 | |
| 5 | 3007-386 | BOLT | 1 | $3.16 | |
| 6 | 3007-381 | BOLT | 1 | $3.16 | |
| 7 | 3003-444 | PLATE, OIL SEAL 88 650 WILDCAT | 1 | $52.95 | |
| 8 | 3007-393 | SCREW,M6X16 | 1 | $2.06 | |
| 9 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 10 | 3003-399 | PLUG (CYLINDER/CRANK),9MM | 1 | $13.95 |
