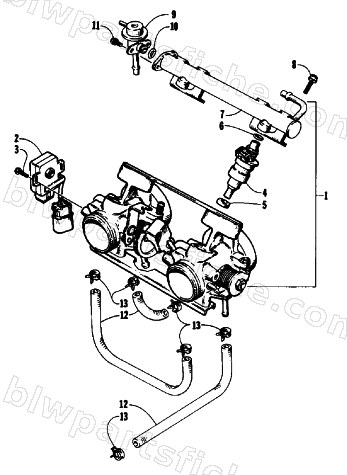

1991 Arctic Cat WILDCAT EFI — THROTTLE BODY ASSEMBLY
1991 WILDCAT EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3003-858 | SENSOR ASSY,THROTTLE | 1 | $477.95 | |
| 3 | 3003-897 | SCREW,THROTTLE SENSOR | 1 | $6.95 | |
| 7 | 3003-866 | PIPE COMP,DELIVERY | 1 | $609.95 | |
| 8 | 3003-901 | SCREW,DELIVERY PIPE | 1 | $11.95 | |
| 9 | 3004-094 | REGULATOR, FUEL PRESSURE | 1 | $424.95 | |
| 10 | 3003-898 | O-RING,FUEL PRESSURE REGULATOR | 1 | $1.95 | |
| 11 | 3003-914 | SCREW,FUEL PRESSURE REGULATOR | 1 | $6.95 | |
| 12 | 3003-902 | HOSE,WATER | 1 | $2.95 | |
| 13 | 3003-850 | CLIP,M12 | 1 | $2.95 | |
| 14 | 3003-847 | HOSE,M7X13X600 | 1 | $20.95 |
