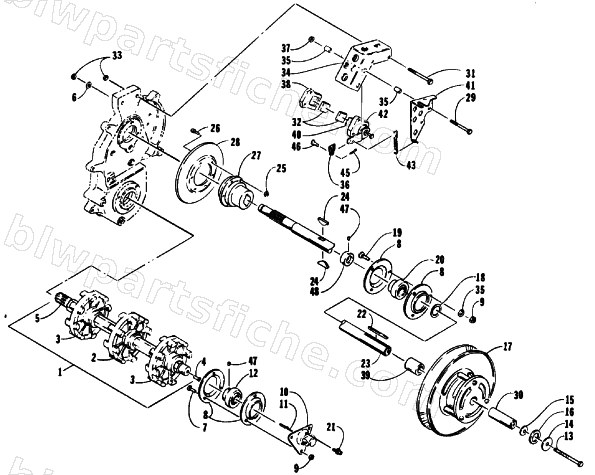

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
1992 CHEETAH TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-022 | TRACK DRIVE - SUB ASSY (MACHINED) | 1 | $306.95 | |
| 2 | 0102-297 | SPROCKET,8 TOOTH | 1 | $50.95 | |
| 3 | 0602-007 | SPROCKET,DRIVE | 1 | $59.95 | |
| 4 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 5 | 0602-487 | SHAFT,DRIVE-HEX | 1 | $412.95 | |
| 6 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 7 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 8 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 9 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 10 | 0602-031 | SPACER,IDLER SHAFT | 1 | $13.95 | |
| 11 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 12 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 13 | 8002-142 | SCREW,CAP-HH 5/16-18 X3.25 G5 Z&Y | 1 | $0.65 | |
| 15 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 16 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 17 | 0726-019 | CLUTCH,DRIVEN | 1 | $379.95 | |
| 18 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 18 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 19 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 20 | 1602-290 | BEARING,1 W/LOCK(LARGE RACE) | 1 | $81.95 | |
| 21 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 22 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 23 | 0602-460 | SHAFT, DRIVEN | 1 | $487.95 | |
| 24 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 25 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 26 | 0623-185 | SCREW,SOCKET HD 10-32X5/8 BLACK | 1 | $13.95 | |
| 27 | 0602-712 | HUB,BRAKE DISC 2-SPD | 1 | $357.95 | |
| 28 | 0602-178 | DISC,BRAKE | 1 | $213.95 | |
| 29 | 0124-079 | HHCS,3/8-16X3 1/2 GR5 | 1 | $26.95 | |
| 32 | 0115-603 | PUCK,BRAKE | 1 | $21.95 | |
| 33 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 34 | 0115-583 | BRKT,MTG BRAKE-WELD'T. | 1 | $126.95 | |
| 35 | 0115-585 | SPACER,BRAKE CALIPER | 1 | $16.95 | |
| 36 | 0602-266 | CLEVIS,BRAKE CABLE-SWEDISH | 1 | $14.95 | |
| 37 | 0124-060 | NUT,CROWNLOCK 3/8-16 UNC Z&Y | 1 | $0.85 | |
| 38 | 0115-584 | CALIPER,STATIONARY CASTING | 1 | $62.95 | |
| 41 | 0602-267 | R/B 0702-080 | 1 | $7.95 | |
| 43 | 0115-602 | SPRING,BRAKE ARM RETURN | 1 | $47.95 | |
| 46 | 0423-109 | PIN,CP26 | 1 | $0.45 | |
| 47 | 0623-216 | SCREW,SET 1/4-28X.25 TYPE G | 1 | $0.95 | |
| 47 | 0623-217 | SCREW,SET 1/4-20X.25 TYPE G | 1 | $0.35 |
