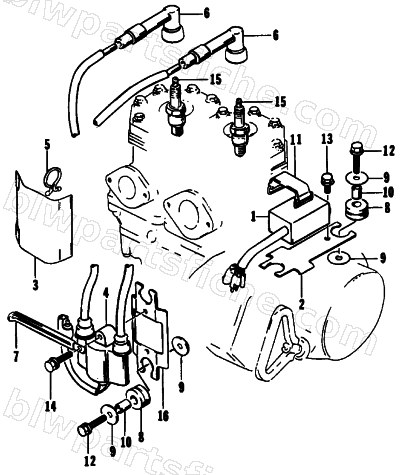

ELECTRICAL
1992 CHEETAH TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-776 | CDI UNIT | 1 | $685.95 | |
| 2 | 3003-703 | BRACKET,CDI UNIT | 1 | $17.87 | |
| 3 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 4 | 3005-386 | COIL ASSY, IGNITION | 1 | $335.95 | |
| 5 | 3002-278 | CLAMP,M6 | 1 | $3.95 | |
| 6 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 7 | 3002-718 | CLAMP,WIRE | 1 | $21.95 | |
| 8 | 3003-534 | CUSHION,IGN COIL BKT | 1 | $13.95 | |
| 9 | 3005-571 | WASHER(6.5X24X1.6) | 1 | $2.95 | |
| 10 | 3003-666 | SPACER,6MM | 1 | $4.95 | |
| 11 | 3003-667 | BAND,FASTENER | 1 | $12.35 | |
| 12 | 3006-909 | BOLT,6X30 | 1 | $3.16 | |
| 13 | 3003-669 | BOLT,M6 X 16 | 1 | $3.30 | |
| 14 | 3003-670 | BOLT,M6 X 25 | 1 | $1.95 | |
| 15 | 0217-700 | SPARK PLUG BR9ES {SOLID} | 1 | $4.54 | |
| 16 | 3003-665 | BRACKET,CDI | 1 | $16.95 |
