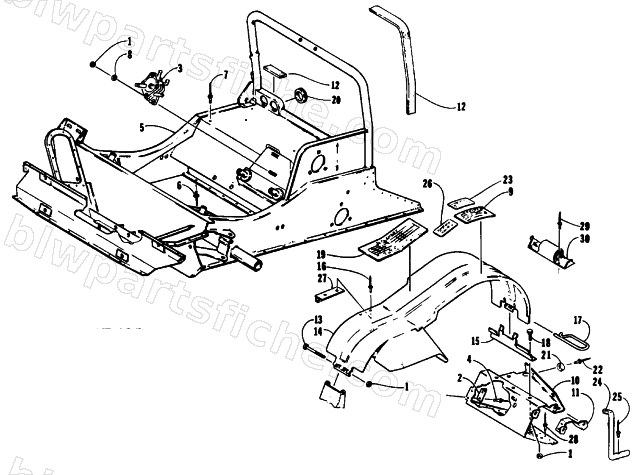

1992 Arctic Cat CHEETAH TOURING — FRONT FRAME AND FOOTREST ASSEMBLY
1992 CHEETAH TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0636-640 | PUMP KIT,FUEL-SQUARE | 1 | $61.95 | |
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 0670-140 | FUEL PUMP(DF52-127) | 1 | $72.79 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 0707-114 | FRONT END-WELDMENT | 1 | $967.95 | |
| 6 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 7 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 0706-243 | FOOTREST-REINFORCE LH | 1 | $117.95 | |
| 10 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 13 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 14 | 0707-028 | SHIELD,CLUTCH-WELD | 1 | $219.95 | |
| 16 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 17 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 18 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 19 | 1611-152 | DECAL,JET CHART | 1 | $6.95 | |
| 20 | 0606-449 | GROMMET,COOLANT TUBE MTG | 1 | $3.95 | |
| 21 | 0606-513 | BUMPER,FOOTREST/HOOD | 1 | $3.95 | |
| 22 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 23 | 0611-704 | DECAL,CAUTION-CARB DRAIN | 1 | $11.95 | |
| 25 | 8060-424 | RIVET,BLIND-DH AA53 BLK | 1 | $0.95 | |
| 26 | 0611-336 | DECAL,CAUTION-CARB & SWITCHES | 1 | $11.95 | |
| 29 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 29 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
