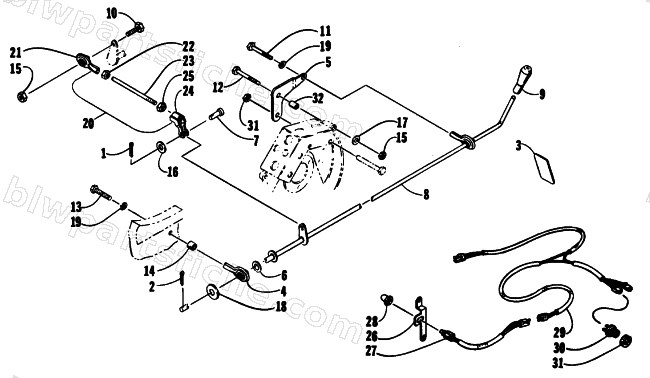

REVERSE SHIFT LEVER ASSEMBLY
1992 COUGAR 2UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 3 | 1611-444 | DECAL,CAUTION-REVERSE | 1 | $21.95 | |
| 4 | 0602-163 | ROD END,FEMALE-.375 | 1 | $24.77 | |
| 6 | 0623-130 | WASHER,SPRING-3/8 | 1 | $1.50 | |
| 7 | 0623-132 | PIN,CLEVIS-.25X.75 LG | 1 | $2.47 | |
| 8 | 0702-137 | LEVER,SHIFT-WELDT | 1 | $47.95 | |
| 9 | 0602-152 | KNOB,SHIFT LEVER | 1 | $15.11 | |
| 10 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 11 | 8004-222 | SCREW,CAP-HH 3/8-24X1.0 G5 Z&Y | 1 | $0.55 | |
| 12 | 8002-139 | SCREW,CAP-HH 5/16-18 X2.50 G5 Z&Y | 1 | $1.95 | |
| 13 | 8004-224 | SCREW,CAP-HH 3/8-24X1.25 G5 Z&Y | 1 | $0.55 | |
| 14 | 0114-312 | SPACER,FRONT-SHOCK MTG | 1 | $16.49 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 18 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 19 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 20 | 0702-186 | LINK ASS'Y, SHIFTING | 1 | $121.95 | |
| 21 | 0602-305 | ROD END L.H. 5/16-24 UNF | 1 | $22.95 | |
| 22 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 23 | 0602-320 | ROD,LINKAGE | 1 | $4.95 | |
| 24 | 0702-105 | YOKE,LINKAGE-WELDT | 1 | $74.95 | |
| 25 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 | |
| 26 | 0602-474 | BRACKET, SWITCH MNT- REV | 1 | $4.95 | |
| 27 | 0630-011 | SWITCH, ALARM | 1 | $60.95 | |
| 28 | 0630-013 | BOOT,SWITCH-REVERSE | 1 | $20.63 | |
| 29 | 0686-121 | HARNESS,WIRING-ALARM | 1 | $58.95 | |
| 30 | 0630-010 | ALARM,REVERSE | 1 | $112.95 | |
| 31 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 32 | 0602-473 | SPACER, LVR MNT BRKT- REV | 1 | $17.87 |
