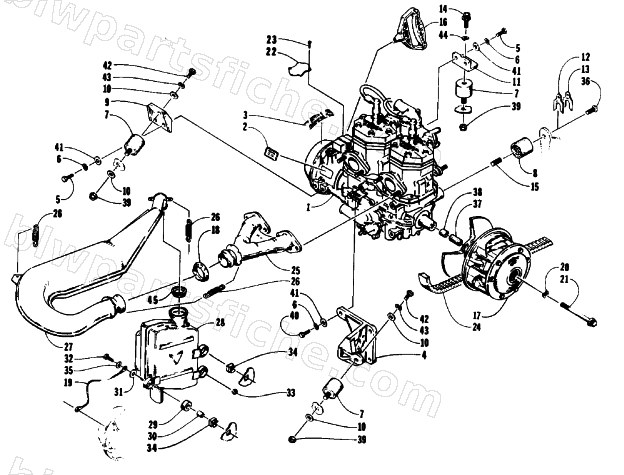

ENGINE AND RELATED PARTS
1992 EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-089 | ENGINE,550 L/C | 1 | $5,351.95 | |
| 2 | 1611-167 | DECAL,ENGINE P/N | 1 | $3.95 | |
| 4 | 0645-104 | BRKT,OFFSET STARTER/MTR MOUNT | 1 | $235.95 | |
| 5 | 8012-131 | SCREW,CAP-HHNLP 5/16-18X.875 G5 Z&Y | 1 | $0.45 | |
| 6 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 7 | 0608-061 | MOUNT,ENGINE | 1 | $36.95 | |
| 8 | 0608-054 | MOUNT,ENGINE-REAR | 1 | $55.95 | |
| 9 | 0608-045 | BRKT,ENG MTG-RH FRONT | 1 | $36.95 | |
| 10 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 11 | 0608-046 | BRKT,ENG MTG-RH REAR | 1 | $33.95 | |
| 12 | 0608-055 | SHIM,ENG MTG-.030 THK CT132 | 1 | $0.85 | |
| 13 | 0608-056 | SHIM,ENG MTG-.060 THK CT116 | 1 | $1.23 | |
| 14 | 0623-265 | SCREW,FLANGE 12-PT-3/8-16X3/4 | 1 | $5.95 | |
| 16 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 17 | 0725-117 | CLUTCH, DRIVE-ASSY | 1 | $775.95 | |
| 18 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 19 | 0686-099 | HARNESS,ENGINE GROUND | 1 | $9.59 | |
| 20 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 21 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 23 | 0623-352 | SCREW,CAP-HH 5MMX.8X12 CL8.8 Z&Y | 1 | $0.26 | |
| 24 | 0227-103 | BELT,DRIVE | 1 | $71.95 | |
| 25 | 0712-033 | MANIFOLD,EXHAUST | 1 | $191.95 | |
| 26 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 28 | 0712-055 | RESONATOR,EXHAUST-WELDT | 1 | $359.95 | |
| 29 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 31 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 32 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 33 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 34 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 35 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 36 | 0623-295 | SCREW,CAP-HSBH 1/2-13X3/4 Z&Y | 1 | $9.95 | |
| 37 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 38 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 39 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 40 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 41 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 42 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 43 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 44 | 8051-278 | WASHER,SPR LOCK-3/8 .377X.688X.115 BLK | 1 | $2.95 | |
| 45 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 46 | 0623-382 | SCREW,FLANGE-12 PT 3/8-16X1.0 GR5 Z&Y | 1 | $2.88 |
