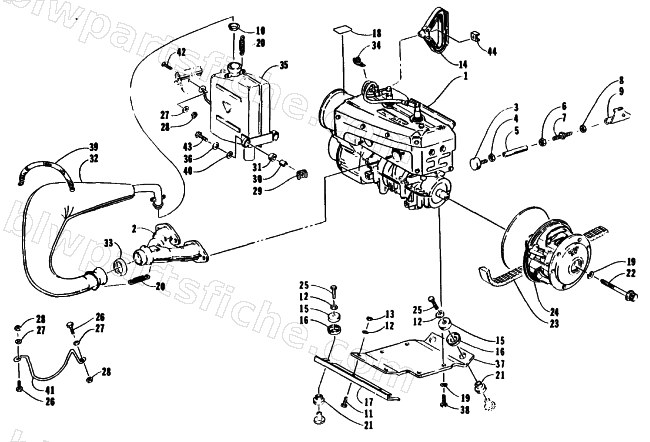

ENGINE AND RELATED PARTS
1992 JAG AFS LT 1 SPEED
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0636-769 | BALL JOINT KIT,2 EXH. | 1 | $65.95 | |
| 0 | 0636-982 | BALL JOINT FIX KIT | 1 | $6.75 | |
| 2 | 0712-047 | MANIFOLD,EXHAUST-WELDT | 1 | $113.95 | |
| 3 | 0608-008 | BUMPER,TORQUE {1.176"} 90 DURO -ENGINE | 1 | $14.95 | |
| 4 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 5 | 0608-011 | TUBE,TORQUE ADJUST {2.48"} | 1 | $47.95 | |
| 6 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 7 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 8 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 9 | 0708-001 | BRKT,TORQUE-WELD'T | 1 | $20.95 | |
| 10 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 11 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 12 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 13 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 14 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 15 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 16 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 17 | 0608-003 | ANGLE, SUPPORT | 1 | $150.95 | |
| 18 | 1611-223 | DECAL,ENGINE P/N 0662-070 | 1 | $6.95 | |
| 19 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 20 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 21 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 22 | 0623-115 | BOLT,HEX HD CAP 1/2-20UNFX6.870 | 1 | $21.95 | |
| 23 | 0227-103 | BELT,DRIVE | 1 | $71.95 | |
| 24 | 0746-043 | CLUTCH,DRIVE-UNCALIBRATED-ASSY(108 COMET | 1 | $909.95 | |
| 25 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 26 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 27 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 28 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 29 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 31 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 32 | 0712-057 | CHAMBER,EXPANSION | 1 | $363.95 | |
| 33 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 34 | 3013-432 | CLAMP WIRING HARNESS,M8 | 1 | $3.95 | |
| 35 | 0712-045 | RESONATOR,EXHAUST-WELDT | 1 | $308.95 | |
| 36 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 37 | 0608-028 | PLATE,MTG-ENGINE | 1 | $132.95 | |
| 38 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 39 | 0123-468 | SPRING,EXTENSION | 1 | $25.95 | |
| 40 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 41 | 0612-141 | BRKT,MTG-EXPANSION CHAMBER | 1 | $15.95 | |
| 42 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 43 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 44 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 |
