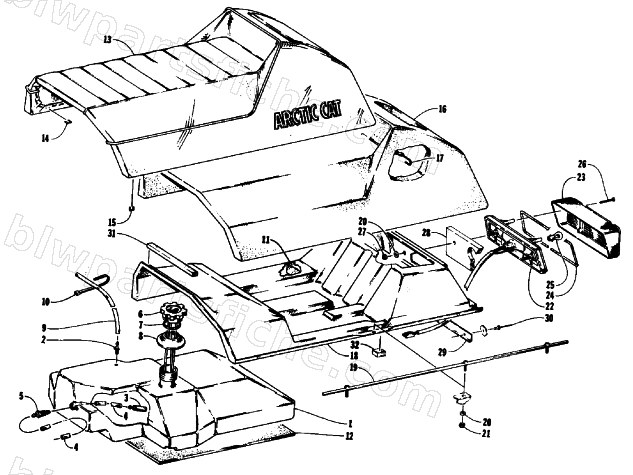

1992 Arctic Cat JAG SPECIAL — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLIES
1992 JAG SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 3 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 4 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 6 | 0670-136 | CAP,GAS W/GAUGE | 1 | $84.95 | |
| 7 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 8 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 9 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0617-061 | PAD,GASTANK-BOTTOM | 1 | $20.95 | |
| 13 | 0706-720 | COVER, SEAT W/ ARCTIC CAT | 1 | $311.29 | |
| 16 | 0706-749 | FOAM,SEAT CUSHION | 1 | $219.95 | |
| 18 | 0606-608 | BASE,SEAT-PLASTIC | 1 | $183.95 | |
| 19 | 0706-347 | ROD,HOLDDOWN-SEATBASE-WELDMT-LH | 1 | $17.95 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 23 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 24 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 25 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 26 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 27 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 28 | 0617-098 | FOAM, SEATBASE-TAIL LIGHT | 1 | $6.95 | |
| 30 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 |
