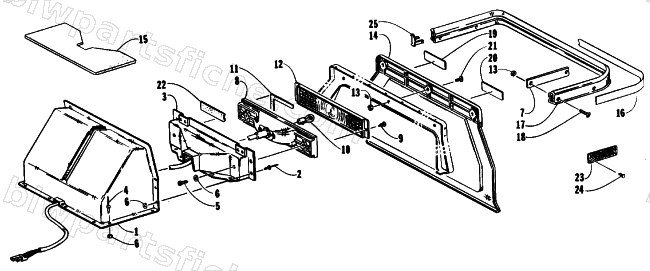

1992 Arctic Cat LYNX — TOOLBOX, TAILLIGHT AND REAR BUMPER
1992 LYNX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0606-504 | SHROUD,TOOLBOX | 1 | $106.95 | |
| 2 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 3 | 0609-112 | SHROUD,TAILLIGHT HOUSING | 1 | $41.95 | |
| 4 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 5 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 6 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 8 | 0709-026 | HOUSING,TAILLIGHT-ASSY | 1 | $84.95 | |
| 9 | 0124-080 | SCREW,PAN HD-7X5/8 CR | 1 | $0.95 | |
| 10 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 11 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 0606-744 | SNOWFLAP-30 DG PLASTIC-PLA | 1 | $45.95 | |
| 15 | 0617-069 | FOAM,TOOLBOX PAD | 1 | $5.95 | |
| 16 | 0611-810 | DECAL,REAR BUMPER STRIPE | 1 | $33.95 | |
| 17 | 0117-235 | BUMPER,REAR | 1 | $172.95 | |
| 18 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 19 | 0212-133 | DECAL,TOWING CAUTION FRENCH | 1 | $8.95 | |
| 20 | 0212-271 | DECAL,CAUTION TOWING | 1 | $8.95 | |
| 21 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 23 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 24 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 25 | 0115-702 | END CAP, RR BUM RH | 1 | $7.95 | |
| 25 | 0115-703 | END CAP, RR BUM LH | 1 | $7.95 |
