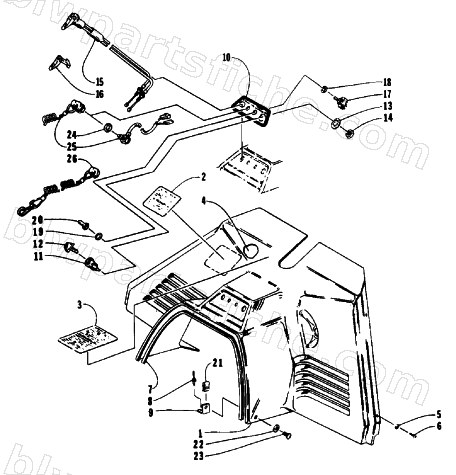

CONSOLE AND SWITCH ASSEMBLIES
1992 PROWLER SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0616-039 | CONSOLE | 1 | $222.95 | |
| 2 | 0611-699 | DECAL,ENGINE CAUTION | 1 | $4.95 | |
| 6 | 0623-012 | SCREW, #8X1/2 TR HD CR | 1 | $0.15 | |
| 7 | 0706-780 | TRIM,CONSOLE-62 LG. | 1 | $16.95 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 10 | 1611-205 | PLATE,CONSOLE-SWITCHES | 1 | $34.95 | |
| 11 | 0609-081 | SWITCH, IGN. (W/0 KEY) | 1 | $54.95 | |
| 12 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 13 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 14 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 16 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 18 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 19 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 20 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 | |
| 21 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 22 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 0123-641 | WASHER,FIBER-1/2X13/16X.030 | 1 | $4.95 | |
| 25 | 0709-054 | TETHER SWITCH-ASSY (CLOSED) | 1 | $42.95 | |
| 26 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 |
