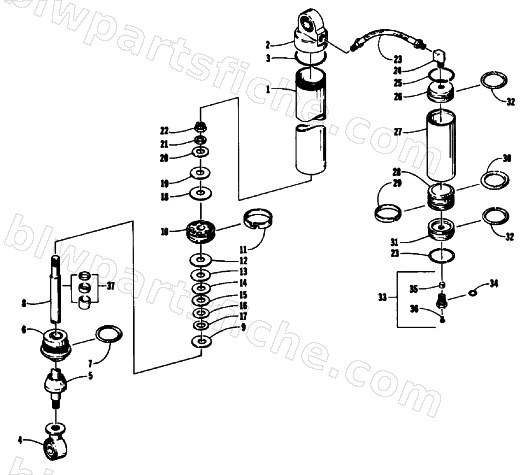

1992 Arctic Cat PROWLER SPECIAL — FRONT SUSPENSION SHOCK ABSORBER
1992 PROWLER SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0603-419 | SHOCK ABSORBER-FRT SUSP | 1 | $536.95 | |
| 1 | 0603-439 | BODY, SHOCK | 1 | $160.95 | |
| 2 | 0603-437 | END CAP, SHOCK | 1 | $64.95 | |
| 3 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 4 | 0603-442 | EYELET, SHOCK | 1 | $147.95 | |
| 5 | 0603-991 | BUMPER,STOP | 1 | $16.95 | |
| 6 | 0603-440 | CAP, SHOCK | 1 | $129.95 | |
| 7 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 | |
| 9 | 0603-387 | WASHER (FOX-TOP OUT PLATE) | 1 | $2.95 | |
| 10 | 0603-388 | PISTON,.070 ORFICE | 1 | $147.95 | |
| 11 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 12 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 13 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 14 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 15 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 16 | 0603-333 | VALVE, .800X.006(3/8ID) | 1 | $13.95 | |
| 17 | 0603-330 | VALVE, .700X .006 (3/8 ID) | 1 | $12.95 | |
| 18 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 19 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 20 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 21 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 22 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 24 | 0603-297 | FITTING,ELBOW-FOX | 1 | $8.95 | |
| 25 | 0604-521 | RING, RETAINING - RESERVOIR | 1 | $5.78 | |
| 26 | 0603-390 | ENDCAP,RESERVIOR (HOSE SIDE) | 1 | $106.95 | |
| 27 | 0603-391 | BODY,RESERVOIR-5" STEEL (227-03-002) | 1 | $362.95 | |
| 28 | 0603-392 | PISTON,RESERVOIR | 1 | $93.95 | |
| 29 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 30 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 31 | 0603-443 | END CAP,RESERVOIR (RB 1604-520) | 1 | $99.95 | |
| 32 | 0603-447 | O-RING, .139 CS X 1.171 ID (FOX) | 1 | $4.95 | |
| 33 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 34 | 0603-445 | O-RING-VALVE | 1 | $3.95 | |
| 36 | 0623-367 | SCREW,MACH-#6-32X.25 LG (SS) | 1 | $2.95 | |
| 37 | 0603-280 | SPACER,SHOCK .125 | 1 | $10.97 | |
| 37 | 0603-281 | SPACER,SHOCK .500 | 1 | $32.95 | |
| 37 | 0603-282 | SPACER,SHOCK 1.000 | 1 | $43.95 |
