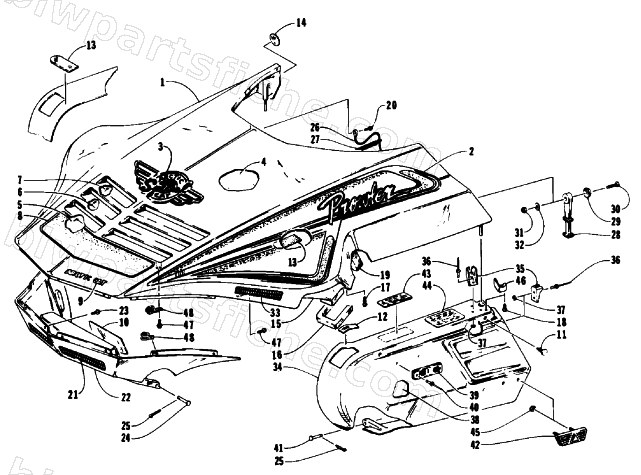

1992 Arctic Cat PROWLER SPECIAL — HOOD AND SIDE PODS
1992 PROWLER SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-218 | HOOD, W/O DECALS | 1 | $1,515.95 | |
| 1 | 0718-213 | HOOD W/DECALS-92 P/S | 1 | $1,130.95 | |
| 2 | 1611-114 | DECAL,HOOD RH | 1 | $83.95 | |
| 2 | 1611-115 | DECAL,HOOD LH | 1 | $93.95 | |
| 3 | 1611-118 | DECAL,440 SPECIAL | 1 | $21.95 | |
| 5 | 0606-651 | FOIL,HOOD-FRT | 1 | $30.95 | |
| 6 | 0606-779 | FOIL,HOOD | 1 | $4.49 | |
| 7 | 0606-778 | FOIL,HOOD | 1 | $20.95 | |
| 8 | 1611-113 | DECAL,NOSE | 1 | $60.95 | |
| 9 | 0611-622 | DECAL,ARCTIC CAT-WHITE | 1 | $20.63 | |
| 10 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 11 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 12 | 0606-893 | PAD,WEAR-POD FRT. | 1 | $4.95 | |
| 13 | 0606-686 | PAD,WEAR-POD-FRT | 1 | $4.95 | |
| 15 | 0606-853 | DUCT,HOOD-LH | 1 | $108.95 | |
| 16 | 0617-112 | SEAL,FOAM-DUCT | 1 | $5.95 | |
| 17 | 0623-311 | SCREW,SELF TAP-HWH #8X3/8 TYPE A | 1 | $0.65 | |
| 18 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 19 | 0617-104 | FOAM,HOOD/POD | 1 | $19.25 | |
| 20 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 21 | 0606-979 | SCREEN,VENT NOSECONE | 1 | $26.95 | |
| 22 | 0616-912 | NOSEPIECE(SECOND-0606-820)-W/O VENT | 1 | $365.95 | |
| 23 | 0623-280 | SCREW,SELF TAP-HWH #8X5/8 TYPE A | 1 | $0.68 | |
| 24 | 0302-016 | PIN,TIGHTENER | 1 | $5.95 | |
| 26 | 0606-882 | CABLE,HOOD-30.5 | 1 | $16.95 | |
| 27 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 28 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 29 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 30 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 31 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 32 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 33 | 0606-980 | SCREEN,VENT-POD | 1 | $6.06 | |
| 34 | 0718-163 | POD,LH W/FOAM | 1 | $442.95 | |
| 35 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 37 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 38 | 0717-078 | FOAM,HOOD-CONVOLUTED 27 X 3'X.75 | 1 | $24.77 | |
| 39 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 40 | 8060-209 | RIVET BLIND-DH AA46 | 1 | $0.95 | |
| 41 | 0623-230 | PIN,CLEVIS 1/4 X 1 7/8 | 1 | $3.95 | |
| 42 | 0606-704 | BUMPER,POD | 1 | $14.95 | |
| 43 | 0611-704 | DECAL,CAUTION-CARB DRAIN | 1 | $11.95 | |
| 44 | 0611-336 | DECAL,CAUTION-CARB & SWITCHES | 1 | $11.95 | |
| 45 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 46 | 0606-801 | GUIDE,POD-LH | 1 | $2.95 | |
| 47 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 48 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
