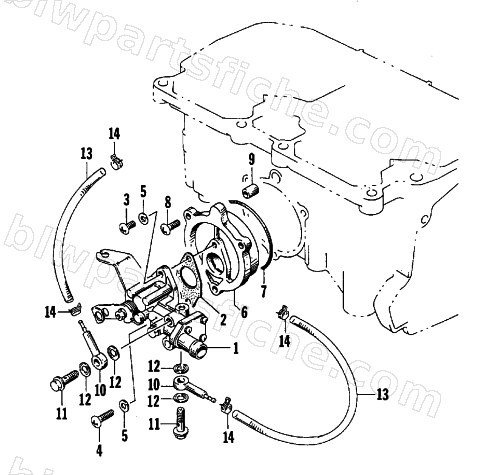

OIL PUMP
1992 WILDCAT EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3004-349 | GASKET, OIL PUMP | 1 | $12.35 | |
| 3 | 3003-821 | SCREW,M6X16 | 1 | $1.69 | |
| 4 | 3004-432 | SCREW, OIL PUMP-M6X25 | 1 | $3.16 | |
| 5 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 6 | 3003-461 | RETAINER,OIL PUMP 88 650 WC | 1 | $213.95 | |
| 7 | 3004-529 | O RING | 1 | $13.95 | |
| 8 | 3007-555 | SCREW | 1 | $2.47 | |
| 9 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 10 | 3003-217 | CHECK VALVE | 1 | $38.95 | |
| 11 | 3002-753 | UNION CHECK VALVE | 1 | $14.95 | |
| 12 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 13 | 3008-035 | HOSE, M3X7X600 | 1 | $34.95 | |
| 14 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 |
