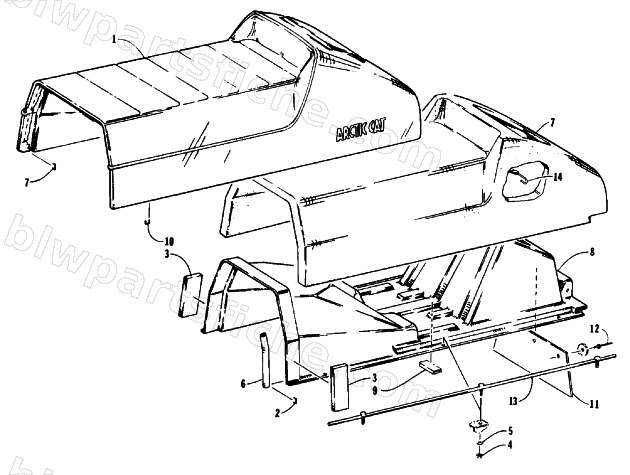

1992 Arctic Cat WILDCAT EFI — SEAT ASSEMBLY
1992 WILDCAT EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0617-062 | FOAM,SEAT BASE-1/2X2X4.25 | 1 | $2.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 0706-277 | CUSHION, FOAM | 1 | $279.95 | |
| 8 | 0606-421 | BASE,SEAT-PLASTIC | 1 | $297.95 | |
| 9 | 0115-409 | FOAM PAD 2.75 X 1.0 X .38 | 1 | $1.95 |
