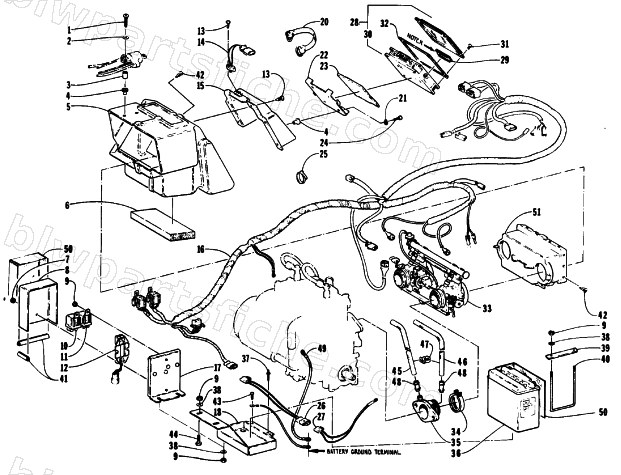

1992 Arctic Cat WILDCAT MOUNTAIN CAT EFI — AIRBOX AND EFI ASSEMBLIES
1992 WILDCAT MOUNTAIN CAT EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 3 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 4 | 0623-084 | RIVET NUT,FLAT HEAD 10-32UNF X .130-.180 | 1 | $0.95 | |
| 5 | 0770-039 | SILENCER,AIR ASSY-ROUTED | 1 | $170.95 | |
| 6 | 0617-050 | FOAM,AIRBOX BOTTOM 1.0X4.0X7.0 | 1 | $8.95 | |
| 7 | 8040-276 | NUT,HEX LOCK-NYL 10-32 Z&Y | 1 | $0.15 | |
| 8 | 0745-034 | COVER,RELAY SHIELD-WELDT | 1 | $23.95 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 3003-883 | RELAY ASSY,CONTROLLER | 1 | $148.95 | |
| 13 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 14 | 3004-018 | SENSOR, AIR TEMP. | 1 | $148.95 | |
| 15 | 0770-042 | PLENUM,AIR-ROUTED | 1 | $34.95 | |
| 16 | 3003-987 | HARNESS, EFI | 1 | $934.95 | |
| 17 | 0745-031 | SHIELD,MOUNT-BATTERY-FABR | 1 | $39.95 | |
| 18 | 0745-032 | TRAY,BATTERY-WELDMT | 1 | $82.95 | |
| 19 | 0686-126 | HARNESS,ENGINE-GROUND | 1 | $12.35 | |
| 21 | 8052-152 | WASHER,LOCK-NO.10 INTL TOOTH TYP A Z&Y | 1 | $0.15 | |
| 22 | 0670-171 | TRAY,MOUNTING-ECU | 1 | $34.95 | |
| 24 | 0623-182 | SCREW,CAP-HSBH 10-32 X .875 | 1 | $0.26 | |
| 25 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 27 | 3003-946 | LEAD, BATT PLUS | 1 | $48.95 | |
| 28 | 3004-106 | ECU-RED | 1 | $2,719.95 | |
| 28 | 3004-107 | ECU-YELLOW | 1 | $2,828.95 | |
| 28 | 3004-108 | ECU-BLUE | 1 | $2,828.95 | |
| 29 | 3004-109 | EPROM-RED 92WC | 1 | $370.95 | |
| 29 | 3004-110 | EPROM-YELLOW 92WC | 1 | $370.95 | |
| 29 | 3004-111 | EPROM-BLUE 92WC | 1 | $345.95 | |
| 31 | 3004-007 | SCREW, MACH-PHFH-M4X10 | 1 | $1.95 | |
| 33 | 3003-961 | THROTTLE BODY ASS Y-UPPER | 1 | $2,366.95 | |
| 33 | 3003-963 | THROTTLE BODY ASS Y-LOWER | 1 | $2,091.95 | |
| 34 | 0670-108 | CLAMP,CARB FLANGE (40/44 MM) | 1 | $24.77 | |
| 36 | 0745-040 | BATTERY PKG(0645-063) | 1 | $113.95 | |
| 37 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 38 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 39 | 0645-086 | STRAP,BATTERY-TOP | 1 | $15.95 | |
| 40 | 0645-061 | ROD,HOLDING-BATTERY | 1 | $19.25 | |
| 41 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 42 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 43 | 0623-190 | SCREW,SELF TAP 1/4-20X3/4 TYPE F | 1 | $1.09 | |
| 44 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 45 | 0610-062 | HOSE,BALANCE-SHORT | 1 | $6.95 | |
| 47 | 0623-365 | CLAMP,HOSE (SNP10) | 1 | $1.95 | |
| 48 | 0670-234 | TUBE,CONNECTING | 1 | $17.87 | |
| 49 | 0686-154 | HARNESS,BATTERY GROUND | 1 | $29.95 | |
| 50 | 0645-082 | WRAP,BATTERY HEAT-6 X 11 | 1 | $6.34 | |
| 52 | 0610-082 | COVER,HOSE-INNER BALANCE HOSE | 1 | $2.95 |
