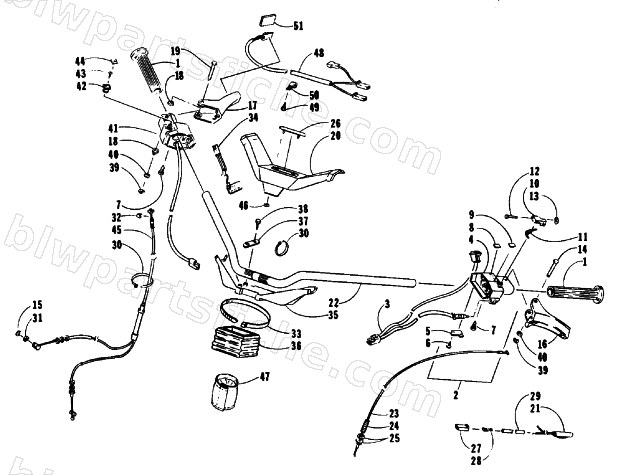

HANDLEBAR AND CONTROLS
1992 WILDCAT MOUNTAIN CAT EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 2 | 0609-044 | HOUSING,BRK CTL -W/SWITCH | 1 | $201.95 | |
| 3 | 0609-086 | SWITCHES & HARNESS,BRK CTL-ASS'Y | 1 | $128.95 | |
| 4 | 0609-087 | HOUSING,BRAKE CONTROL | 1 | $89.95 | |
| 4 | 0609-095 | HOUSING,BRAKE CONTROL | 1 | $116.95 | |
| 5 | 0609-088 | PLATE,RETAINING-HI BEAM SWITCH | 1 | $13.73 | |
| 6 | 0609-089 | SCREW,RETAINING PLATE | 1 | $3.95 | |
| 7 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 8 | 0611-153 | DECAL,DIMMER(SLVR) | 1 | $6.95 | |
| 9 | 0211-919 | DECAL, PARK BUTTON | 1 | $7.95 | |
| 10 | 0609-048 | ACTUATOR,PARK BRKE | 1 | $14.95 | |
| 11 | 0609-049 | SPRING,ACTUATOR | 1 | $3.95 | |
| 12 | 0609-050 | PIN,RETAINING PARK | 1 | $1.95 | |
| 13 | 0609-051 | RING,RETAINING PRK | 1 | $1.95 | |
| 14 | 0609-041 | PIN,BRAKE LEVER | 1 | $2.61 | |
| 15 | 0124-057 | E-RING | 1 | $1.64 | |
| 16 | 0609-042 | LEVER,BRAKE | 1 | $31.95 | |
| 17 | 0609-018 | LEVER,THROTTLE-VM34 | 1 | $31.95 | |
| 18 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 19 | 0609-039 | PIN,THROTTLE LEVER | 1 | $3.95 | |
| 21 | 0115-356 | HEATER,HANDLEBAR 32.00" | 1 | $66.95 | |
| 22 | 0605-077 | HANDLEBAR - PAINTED | 1 | $81.95 | |
| 23 | 0187-202 | CABLE,BRAKE | 1 | $76.95 | |
| 24 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 25 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 | |
| 27 | 0230-015 | CONN BODY RECPT 1CON | 1 | $1.95 | |
| 28 | 0231-007 | TERMINAL FMALE 2 COND | 1 | $2.95 | |
| 29 | 0706-528 | GEON TUBING-10 FT ROLL | 1 | $13.95 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 0124-056 | WASHER | 1 | $13.73 | |
| 32 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 33 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 34 | 0709-057 | PLUG,BY-PASS-IGNITION(2-PRONG) | 1 | $26.95 | |
| 35 | 0605-089 | HOUSING,HANDLEBAR PAD | 1 | $48.95 | |
| 37 | 0605-094 | PLATE,MTG-HANDLE BAR PAD HOUSING | 1 | $37.95 | |
| 38 | 0123-875 | SCREW,METAL HEX #10X5/8 | 1 | $0.15 | |
| 39 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 40 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 41 | 0609-084 | SWITCH, THROTTLE - W/O LEVER | 1 | $162.95 | |
| 42 | 0609-120 | KNOB,EMER STOP SWITCH | 1 | $15.11 | |
| 43 | 0609-612 | SCREW, SELF-TAP PH-3MMX10MM | 1 | $3.16 | |
| 44 | 0609-121 | DECAL,MARK PLATE | 1 | $4.95 | |
| 45 | 0687-035 | CABLE,THROTTLE | 1 | $125.95 | |
| 46 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 47 | 0706-202 | WRAP,STRG POST (BLK) W/FOAM | 1 | $52.95 | |
| 48 | 0609-140 | ELEMENT,THUMBWARMER | 1 | $66.95 | |
| 49 | 0623-200 | SCREW,SELF TAP #8X5/16 | 1 | $0.15 | |
| 50 | 0623-169 | CLAMP,WIRE-3/16 ID | 1 | $8.21 | |
| 51 | 0617-109 | PAD,INSULATOR-THUMB WARMER | 1 | $21.95 |
