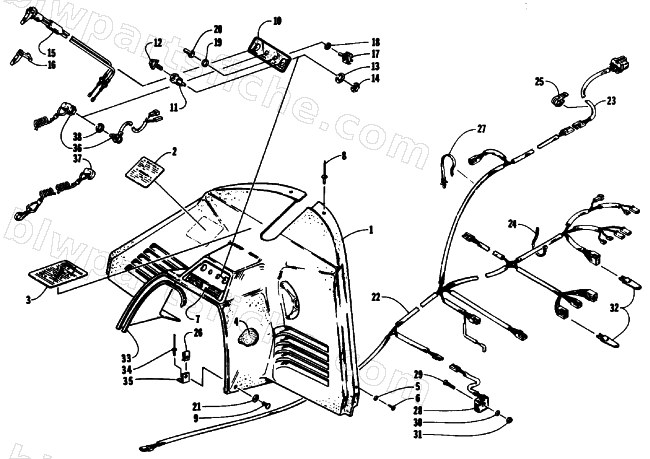

1992 Arctic Cat WILDCAT MOUNTAIN CAT — CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1992 WILDCAT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0606-924 | CONSOLE | 1 | $302.95 | |
| 2 | 0611-699 | DECAL,ENGINE CAUTION | 1 | $4.95 | |
| 4 | 0617-140 | FOAM,CONSOLE-RH. | 1 | $8.95 | |
| 4 | 0617-141 | FOAM,CONSOLE-LH. | 1 | $23.95 | |
| 6 | 0623-012 | SCREW, #8X1/2 TR HD CR | 1 | $0.15 | |
| 8 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 10 | 1611-205 | PLATE,CONSOLE-SWITCHES | 1 | $34.95 | |
| 11 | 0609-081 | SWITCH, IGN. (W/0 KEY) | 1 | $54.95 | |
| 12 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 13 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 14 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 15 | 0687-038 | CABLE,CHOKE-DUAL | 1 | $85.95 | |
| 16 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 17 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 18 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 19 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 20 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 0686-129 | HARNESS,MAIN WIRING | 1 | $211.95 | |
| 23 | 0686-134 | HARNESS,HEADLIGHT | 1 | $56.95 | |
| 24 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 26 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 28 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 29 | 0623-096 | BOLT,RIB NECK-RDH 1/4-20X1.50 Z&Y | 1 | $0.55 | |
| 30 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 31 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 32 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 33 | 0706-780 | TRIM,CONSOLE-62 LG. | 1 | $16.95 | |
| 34 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 36 | 0709-054 | TETHER SWITCH-ASSY (CLOSED) | 1 | $42.95 | |
| 37 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 38 | 0123-641 | WASHER,FIBER-1/2X13/16X.030 | 1 | $4.95 |
