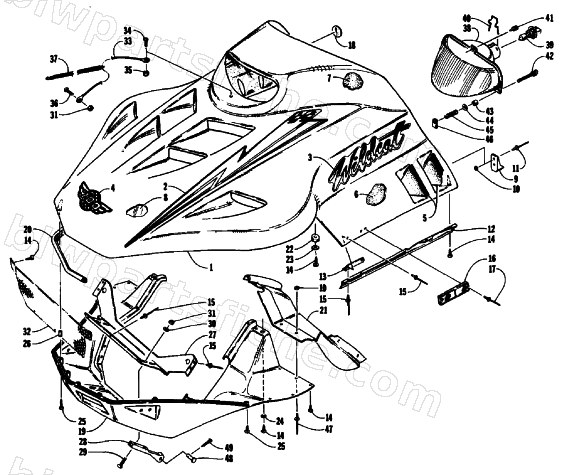

HOOD AND HEADLIGHT
1992 WILDCAT MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-216 | HOOD W/O DECALS | 1 | $967.95 | |
| 1 | 0718-217 | HOOD W/DECALS-92 WC | 1 | $1,870.95 | |
| 2 | 1611-207 | DECAL,HOOD SIDE-LH | 1 | $91.95 | |
| 3 | 1611-311 | DECAL,WILDCAT-HOOD | 1 | $58.95 | |
| 4 | 1611-208 | DECAL,HOOD-WINGS | 1 | $83.95 | |
| 5 | 1611-211 | DECAL,HOOD-BOTTOM,LH | 1 | $51.95 | |
| 5 | 1611-210 | DECAL,HOOD-BOTTOM,RH | 1 | $155.95 | |
| 6 | 0717-009 | FOAM,HOOD-LH | 1 | $20.95 | |
| 6 | 0717-010 | FOAM,HOOD-RH | 1 | $20.95 | |
| 7 | 0717-011 | FOAM, HOOD-TOP CENTER | 1 | $17.95 | |
| 9 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 10 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 12 | 0616-097 | CHANNEL,HOOD-LH | 1 | $12.35 | |
| 12 | 0616-096 | CHANNEL,HOOD-RH | 1 | $13.95 | |
| 13 | 0616-095 | BRACKET,CHANNEL-HOOD | 1 | $2.61 | |
| 14 | 0623-012 | SCREW, #8X1/2 TR HD CR | 1 | $0.15 | |
| 15 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 16 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 21 | 0606-935 | FENDER,LH | 1 | $218.95 | |
| 21 | 0606-934 | FENDER,RH | 1 | $218.95 | |
| 22 | 0606-513 | BUMPER,FOOTREST/HOOD | 1 | $3.95 | |
| 23 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 25 | 0623-358 | SCREW,SELF TAP-PHPNH #10X1.25 AB BLK2 | 1 | $0.15 | |
| 26 | 0606-985 | BUSHING,ALIGNMENT-HOOD/NOSEPIECE | 1 | $18.95 | |
| 27 | 0616-101 | BRACE,NOSEPIECE | 1 | $63.95 | |
| 28 | 0616-034 | HINGE,HOOD | 1 | $223.95 | |
| 29 | 0623-347 | SCREW,MACH FH CR 10-24 X 1.00 Z&Y | 1 | $0.26 | |
| 30 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 31 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 32 | 0616-055 | SCREEN,NOSECONE | 1 | $40.95 | |
| 34 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 35 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 36 | 8007-400 | SCREW,MACH-CRTH 10-24X.75 G2 Z&Y | 1 | $0.40 | |
| 37 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 38 | 0709-058 | HEADLIGHT ASS'Y-HALOGEN | 1 | $143.95 | |
| 39 | 0609-155 | BULB,HEADLIGHT (9004) | 1 | $50.95 | |
| 40 | 0609-164 | CLIP,RETAINING-HEADLIGHT BULB | 1 | $20.95 | |
| 41 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 42 | 0623-372 | SCREW,THUMB-1/4X20X3.0 | 1 | $5.92 | |
| 43 | 0606-805 | BUSHING,MTG-HEADLIGHT POD | 1 | $19.25 | |
| 44 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 45 | 0623-360 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $15.11 | |
| 46 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 47 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 48 | 0302-016 | PIN,TIGHTENER | 1 | $5.95 |
