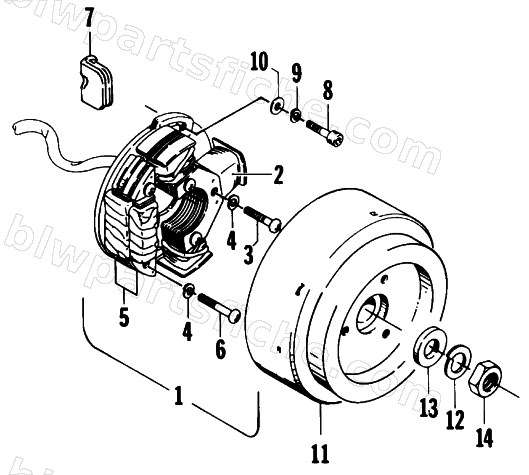

1993 Arctic Cat 580 ZR — MAGNETO
1993 580 ZR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-833 | STATOR | 1 | $785.95 | |
| 2 | 3003-013 | COIL ASSEMBLY, LIGHTING | 1 | $148.95 | |
| 3 | 3007-848 | SCREW,5X30 | 1 | $2.75 | |
| 4 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 | |
| 5 | 3004-834 | COIL, PRIMARY FROM(3003-681 ) | 1 | $266.95 | |
| 6 | 3007-843 | SCREW,M5X35 | 1 | $2.75 | |
| 7 | 3003-795 | GROMMET,MAGNETO LEAD WIRE | 1 | $20.63 | |
| 8 | 3007-509 | BOLT,TENSIONER ADJUSTER | 1 | $3.95 | |
| 9 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 10 | 3006-401 | WASHER,6.3 X 14 X 1.6 | 1 | $1.64 | |
| 11 | 3004-979 | FLYWHEEL | 1 | $1,106.95 | |
| 12 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 13 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 14 | 3007-556 | NUT | 1 | $3.95 |
